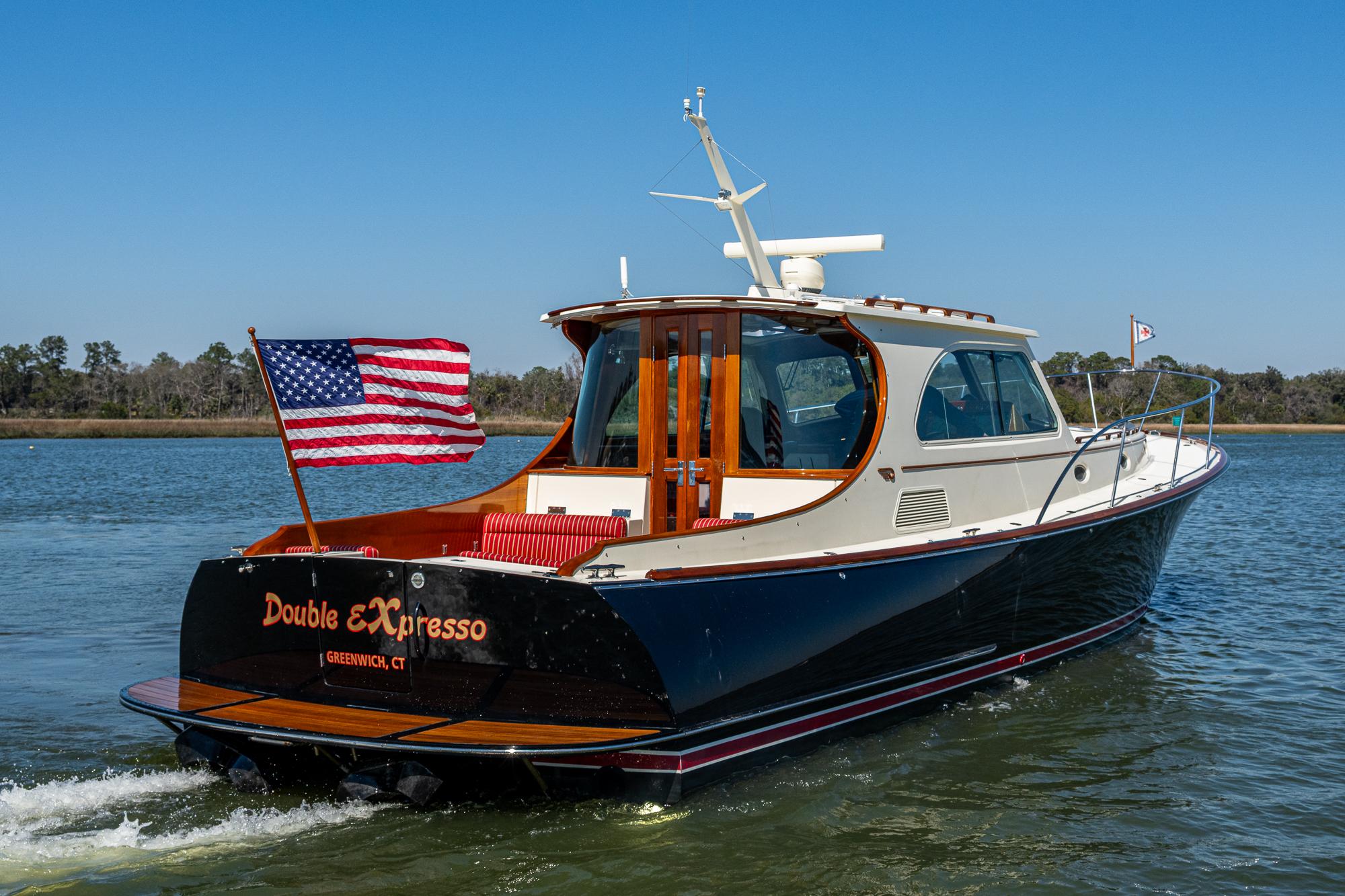

Vessel Walkthrough
DOUBLE EXPRESSO Features include:
- Bow rail
- Teak cockpit sole in cockpit
- Gloss varnished pilothouse, galley and master cabin sole
- Sky screens on all trunk cabin hatches and pilothouse hatches.
- Dimmable cabin lighting throughout provides enhanced ambiance.
- Six opening port lights and nine opening overhead hatches provide a light and airy interior.
- Hella fans provide extra air circulation in pilothouse and master cabin when necessary.
- Reverse-cycle air-conditioning in the interior and Helm/Salon offers additional cooling and heating comfort.
- OceanAir Skysol pleated blinds for side windows
- 12 kw generator (715 Hrs 1-24)
- Bose entertainment system with four zones.
- Spring line cleats.
- Digital 4’ cellular antenna.
- Tinted side windows.
- Gloss varnish in pilothouse.
Audio System:
- Bose Lifestyle 28 system in lieu of standard stereo
- Dinette to be one zone with 5 speaker system and 20” LCD flat screen mounted on aft bulkhead.
- Pilothouse and cockpit to be second zone with (3) sets Bose speakers: one set in dinette, one set in pilothouse, and one set in cockpit, each with individual volume control.
- Satellite radio and Bluetooth input to the Bose system.
- Two (2) Bose speakers in master cabin with 20” LCD flat screen mounted to star board.
- Individual zone volume controls.
- Two (2) remote IR receivers.

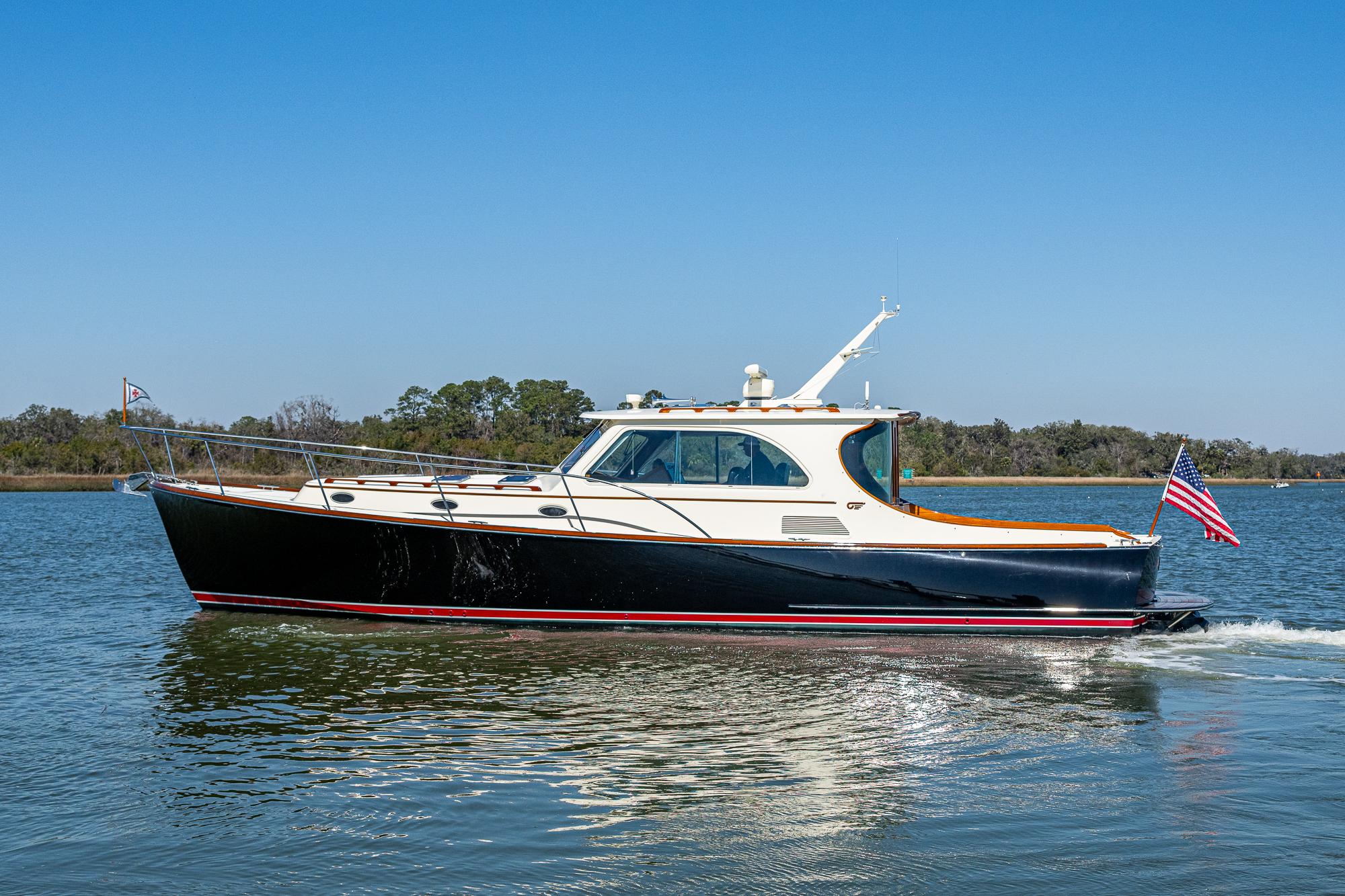

HULL:
- Super Jet Black Awlgrip topsides.
- Light Cream Gelcoat deck & cabintop with molded-in nonskid.
- Custom double off white boot, G8010, w/ single Vivid red center stripe boot stripe.
- Black bottom.
HULL and DECK CONSTRUCTION:
- The Hull is Hinckley DualGuard™ Composite Construction- Kevlar®/E-glass outer skin. Aircraft grade end grain balsa below the waterline. Carbon fiber inner skin. Laminated with Vinylester resin using Seaman Composite Resin Infusion Molding Process(SCRIMP®).
- The Deck is E-glass outer and inner skin with aircraft grade end grain balsa and closed cell foam core. Laminated with Vinylester resin using Seaman Composite Resin Infusion Molding Process (SCRIMP®).
- The deck has a molded nonskid pattern
- Marelon ball-valve seacocks below the water line, and Marelon thru-hulls above the water line.
- Stainless steel 316L drain plates on all scuppers.
- G10 backing plates under deck for bow rail
- 4’ Chafe strips at spring cleats.
- Stainless steel half-round molding on rub rail.
- Swim platform with teak inserts has a stainless steel swim ladder under the swim platform
PILOT HOUSE EXTERIOR and DECK:
The Pilothouse roof has a custom Hinckley mast (painted to match house) that supports a anchor/steaming light, VHF antenna, cockpit floodlight and dual trumpet air horn.
- Hailer horn painted to match deck.
- Running lights.
- Wireless cellular rooftop antenna.
- Remote control spotlight.
- GPS antenna
A clever foredeck locker has a custom stainless steel anchor roller under a flush hatch that can be pivoted to deck launch position. Remote hand held control for anchor windlass as well as control at helm station makes anchoring this boat very easy. The anchor can be pinned in place or pivoted back into the locker for a stowed away profile.
- A saltwater deck wash spigot is in the foredeck windlass locker.
- Tapered, varnished teak toe rail with Hinckley profile and varnished teak trim.
- Handrails on the cabin trunk and pilothouse tops are varnished teak.
- (9) Lewmar Ocean aluminum hatches with smoke gray Lexan.
- (6) Trunk cabin opening elliptical port lights with removable screens.
- Stainless steel chocks and mooring cleats.
- Wichard folding pad eyes & chafe strips for fender & dock lines – extended chafe strips port and starboard.
- Outboard transom locker with over board drain.
- Stainless steel deck scupper screens.
- Full bow rail.

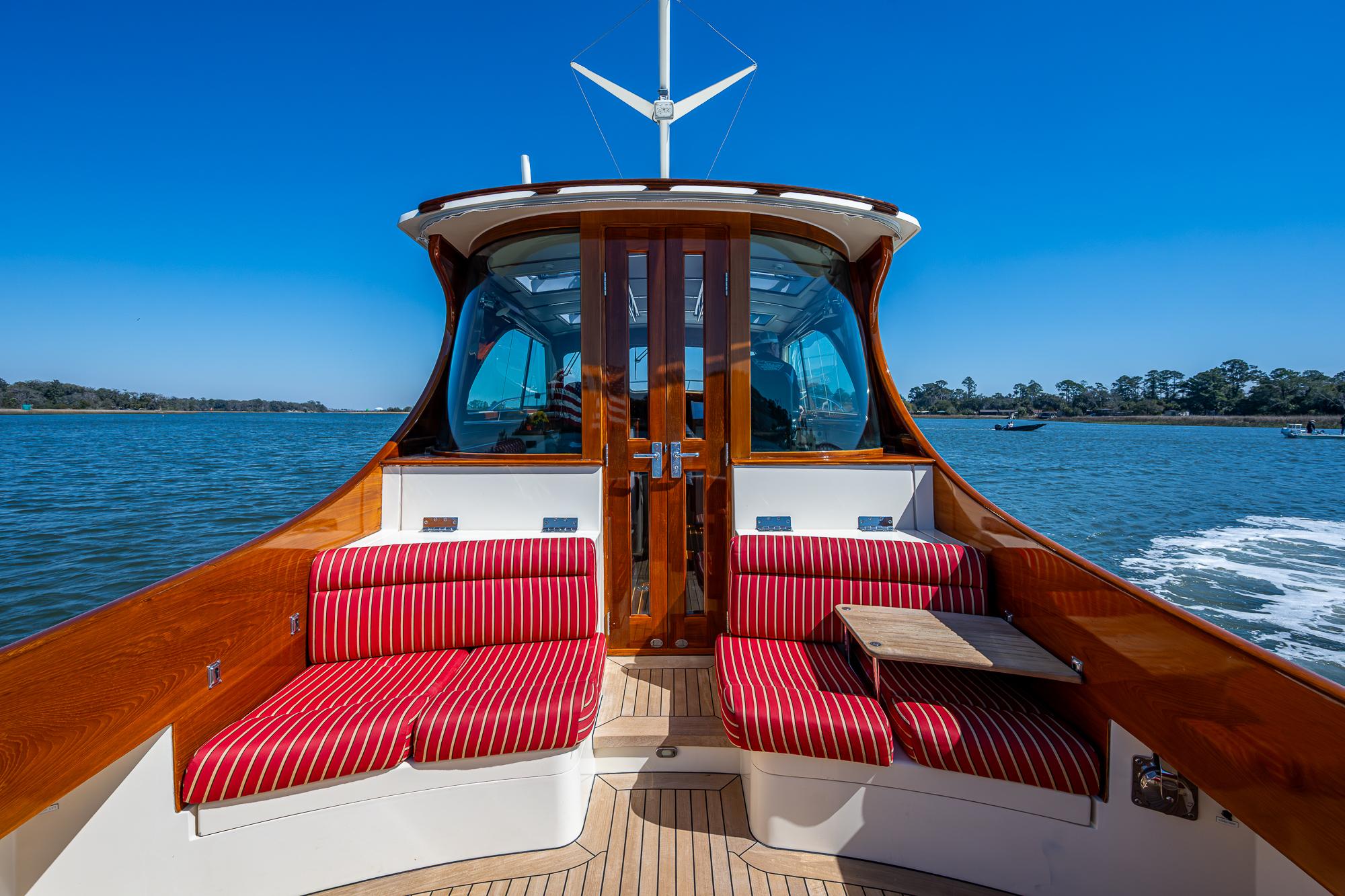

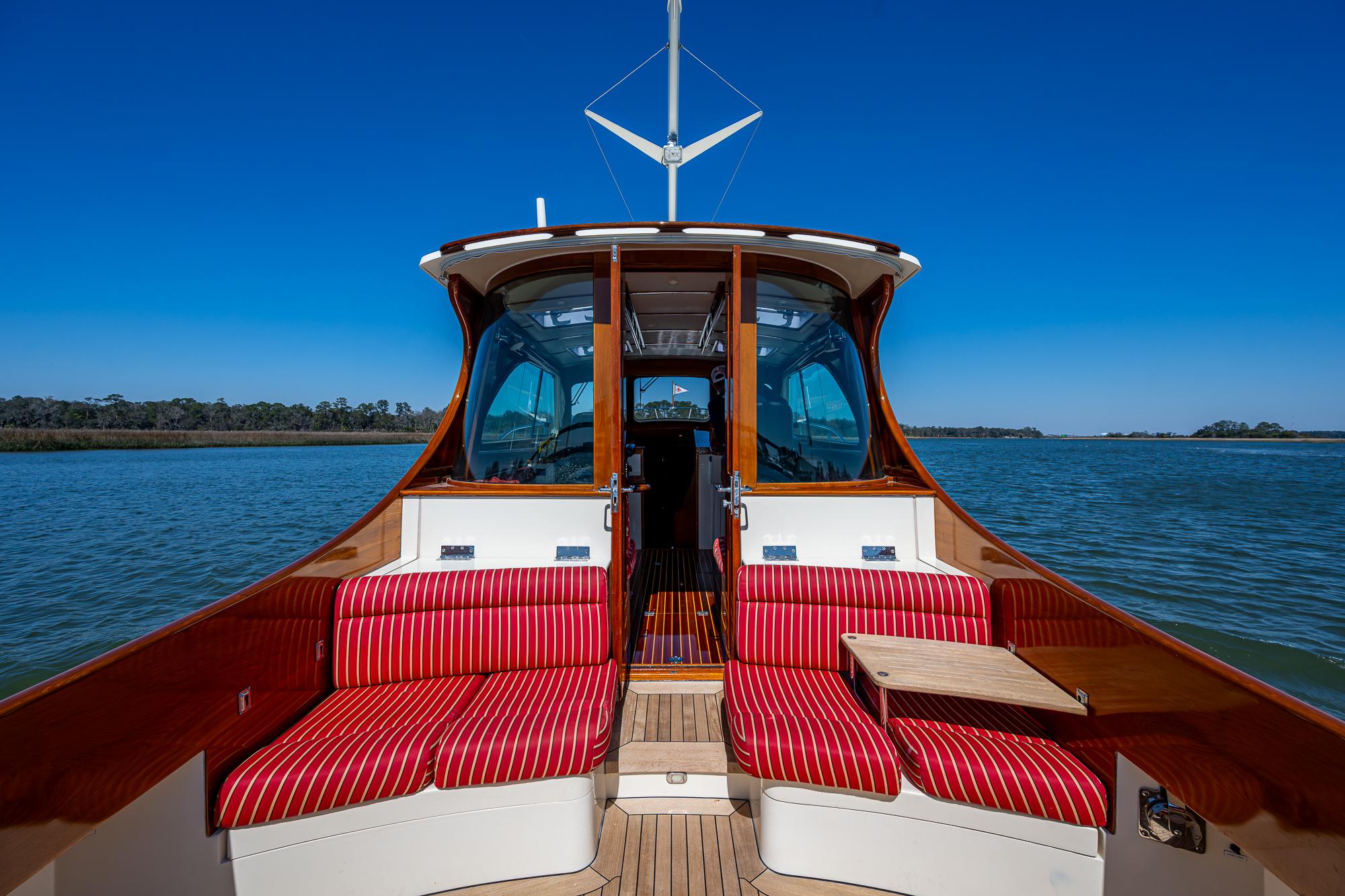

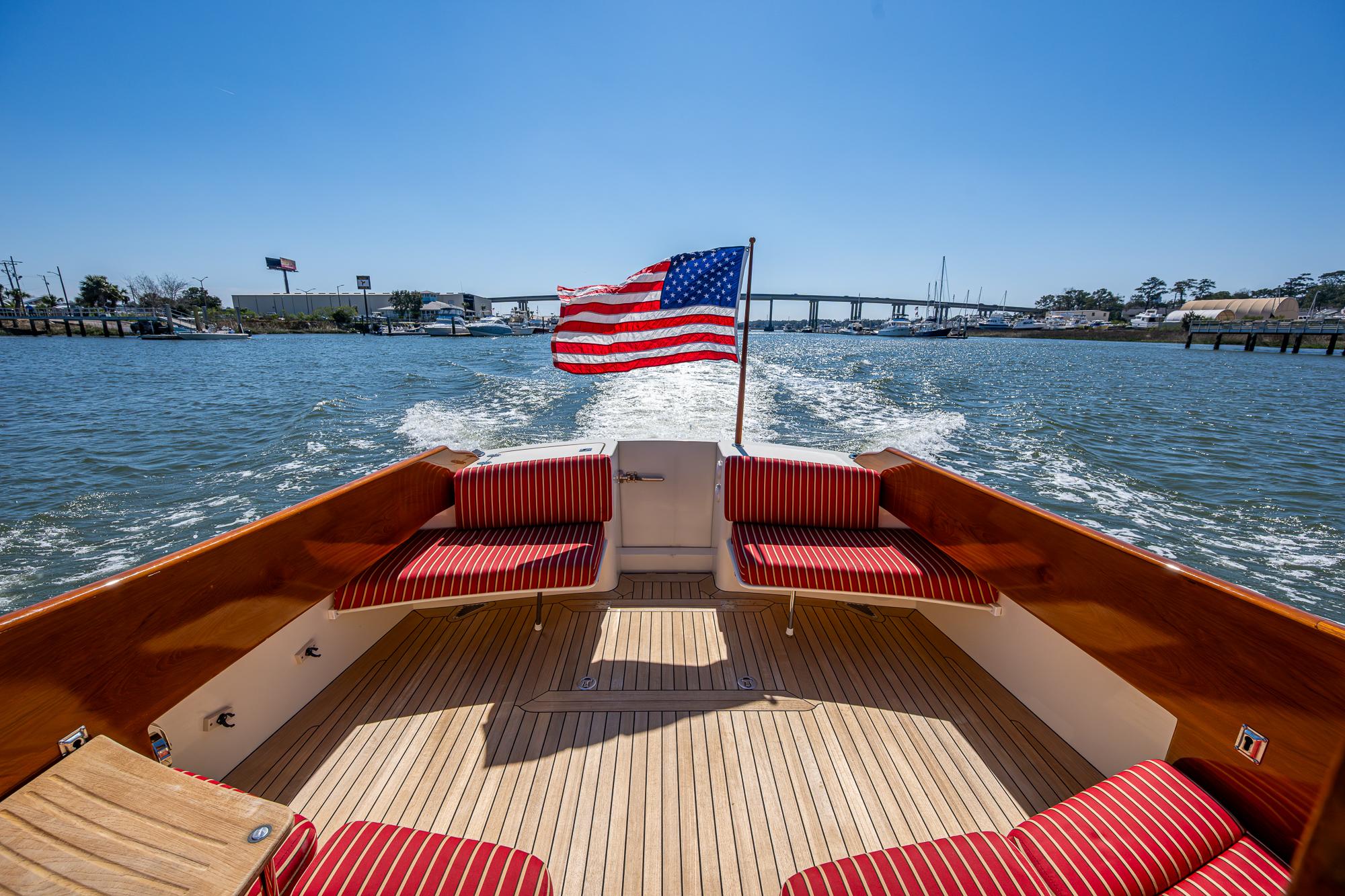

COCKPIT:
Entry to the boat cockpit is either from the side gunwale step or through the transom. A centerline transom door with stainless steel clasp and hinges opens from the swim platform.
- Oiled Teak sole
- Varnished teak coaming cap.
- Removable teak boarding step for side deck - that can be used port or starboard.
- Removable stainless steel with teak boarding step - attaches to inboard coaming port or starboard.

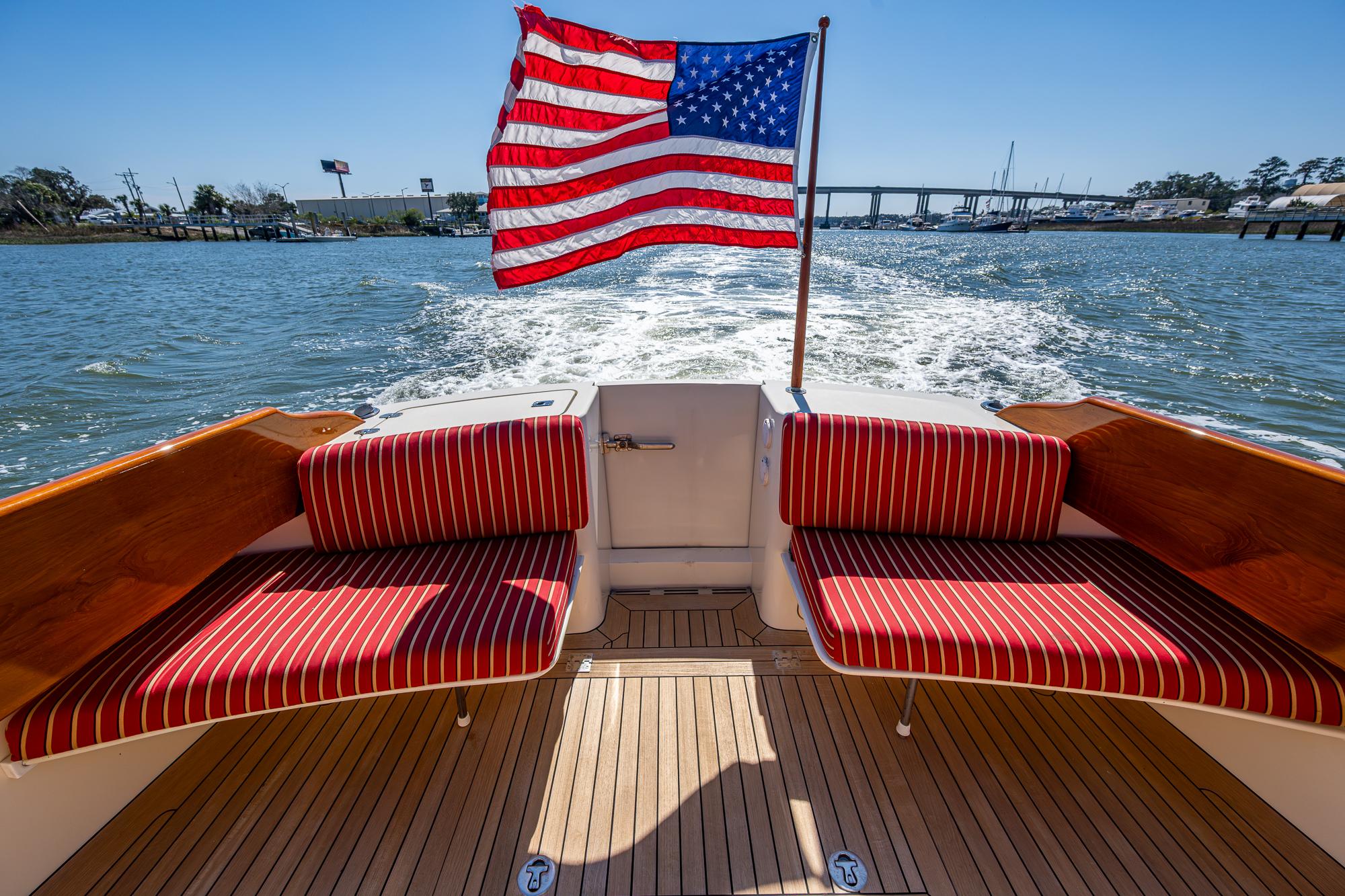

- Aft-facing Settees - Port and starboard with cushions that are covered in Sunbrella fabric.
- Forward facing settee along transom in cockpit with transom door filler seat, all cushions covered in Sunbrella fabric
- Cockpit coaming lights with dimmer and courtesy lighting in cockpit walkway riser
- Ivory Stamoid cockpit cover fastens to pilothouse top and fastens with snaps to cockpit stern.
- Cockpit shower with spigot has hot and cold mixing valve near transom door.
- Freshwater spigot in aft cockpit
- Glendinning Cable Master shore cord reel system.
- A cockpit sole hatch access to the stern lazarette for jet service and extra storage.
- Cockpit cooler – Insulated and drained “fish box-style” in transom

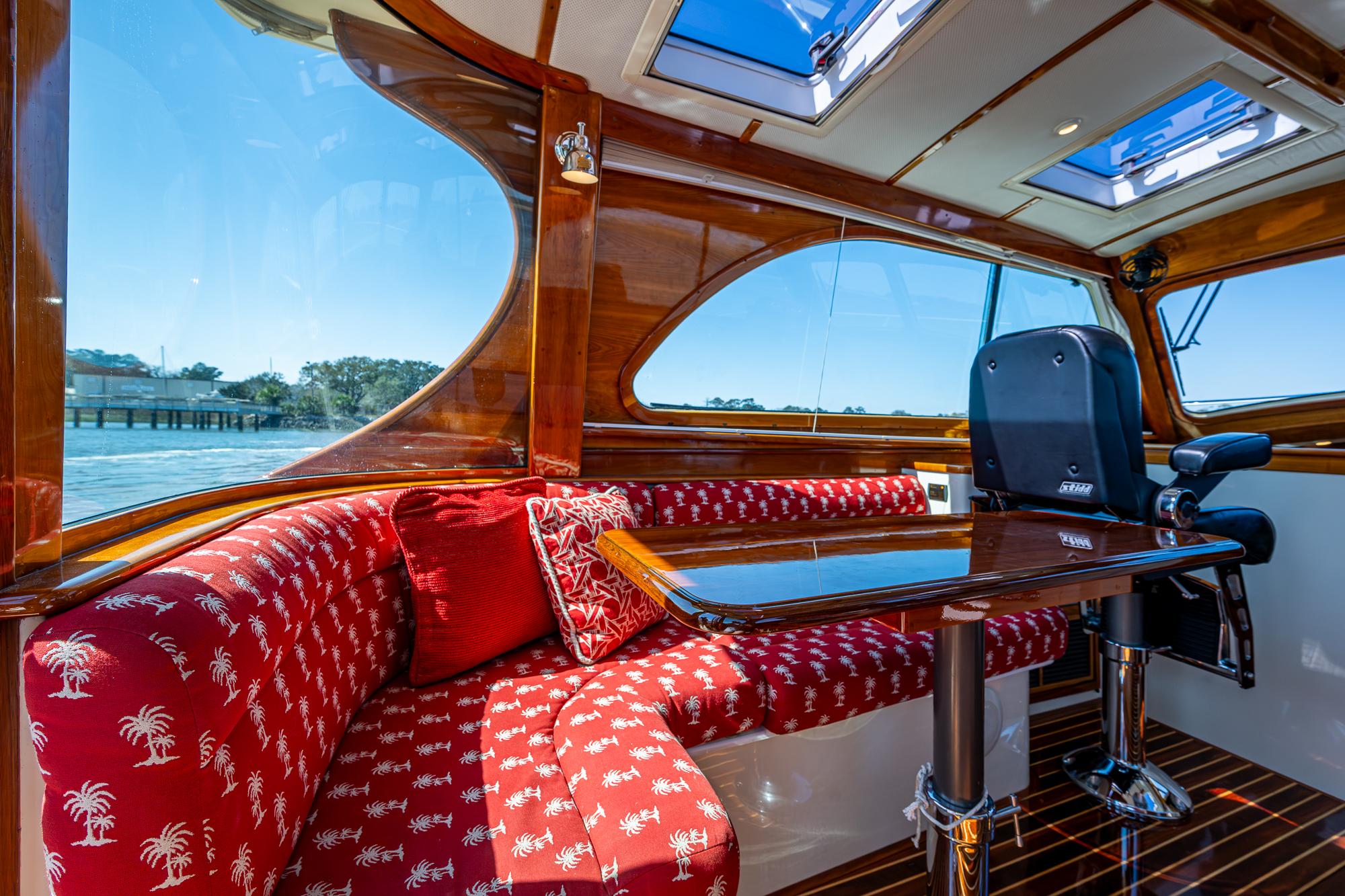

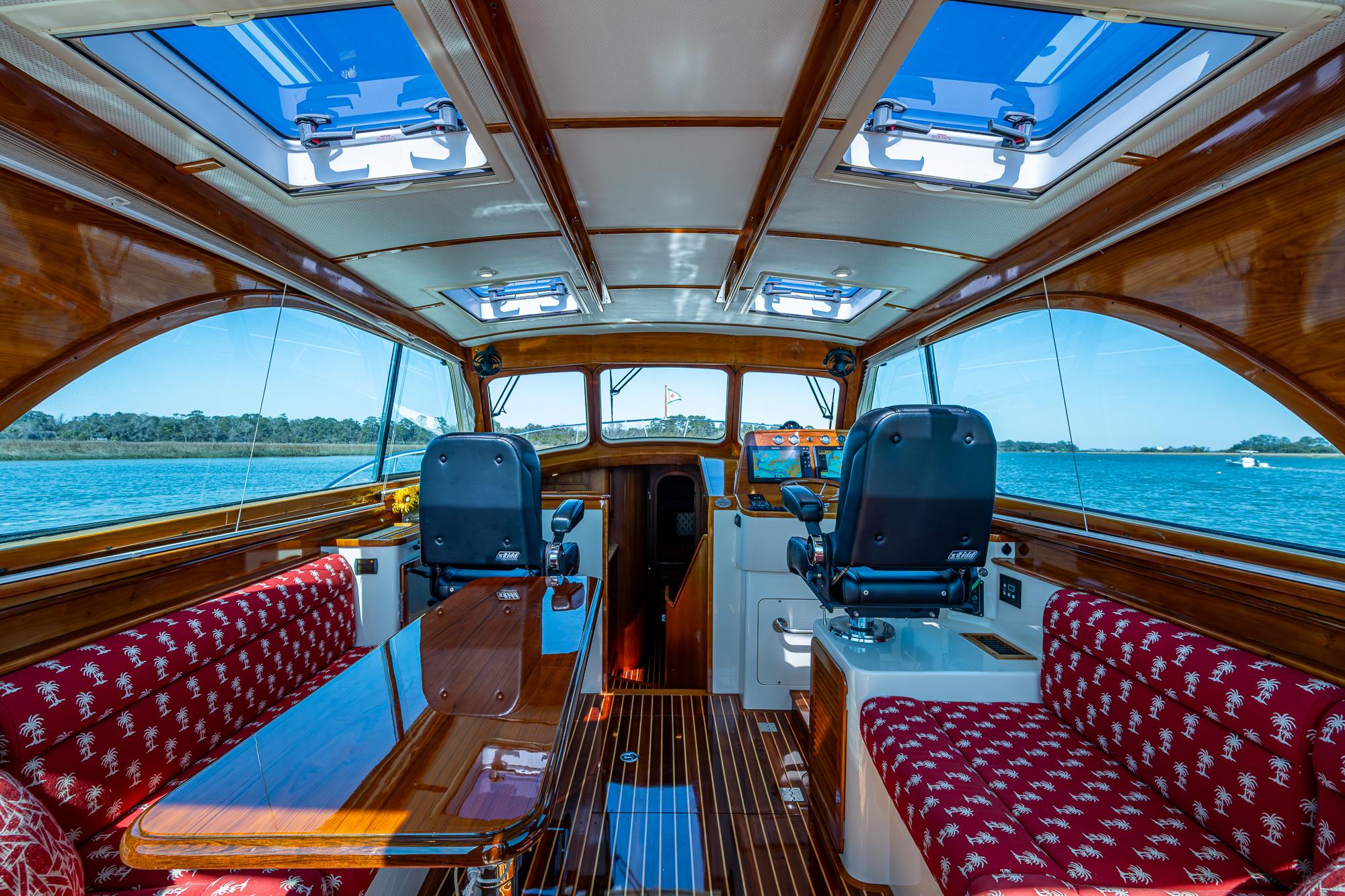

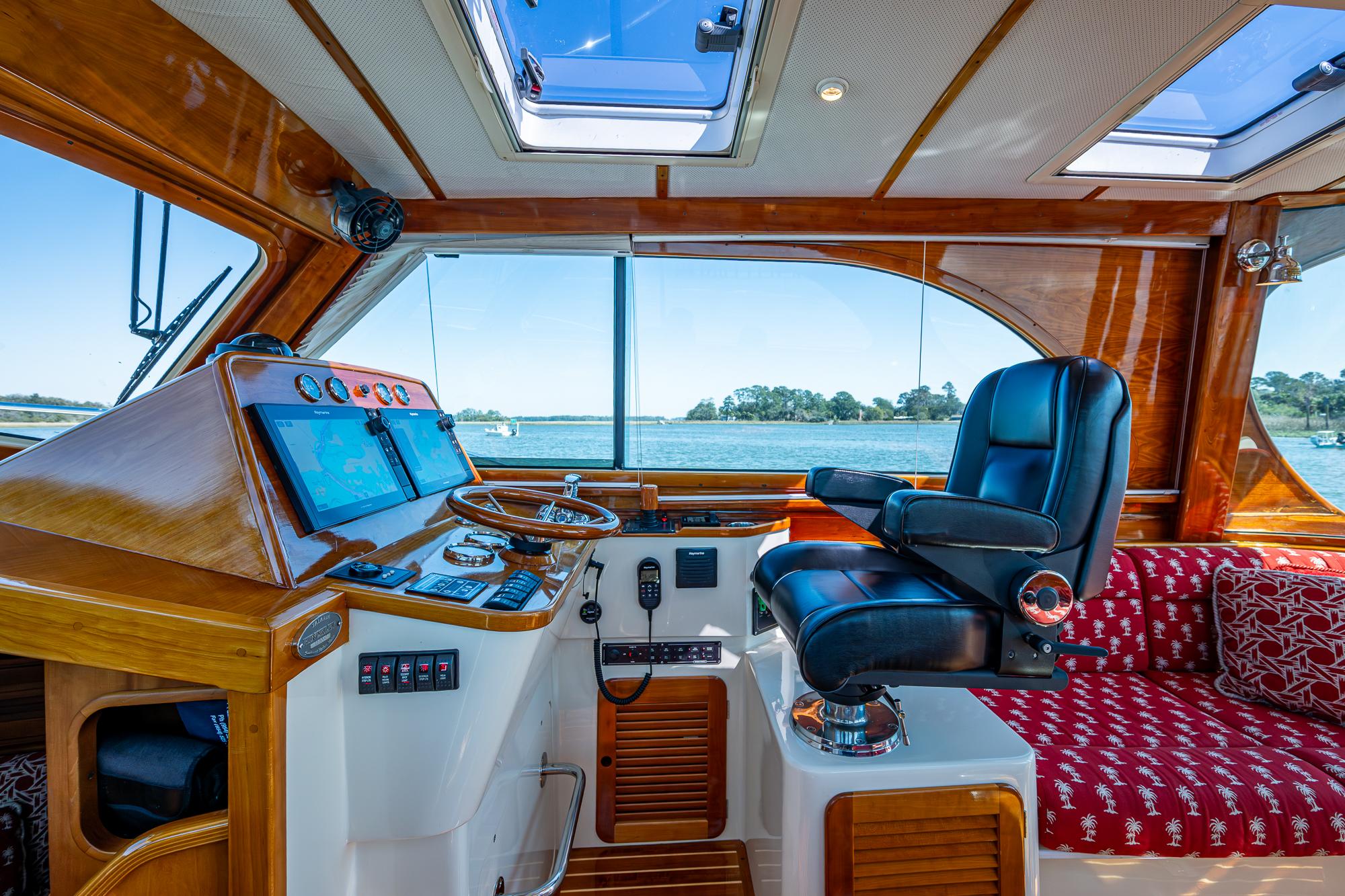

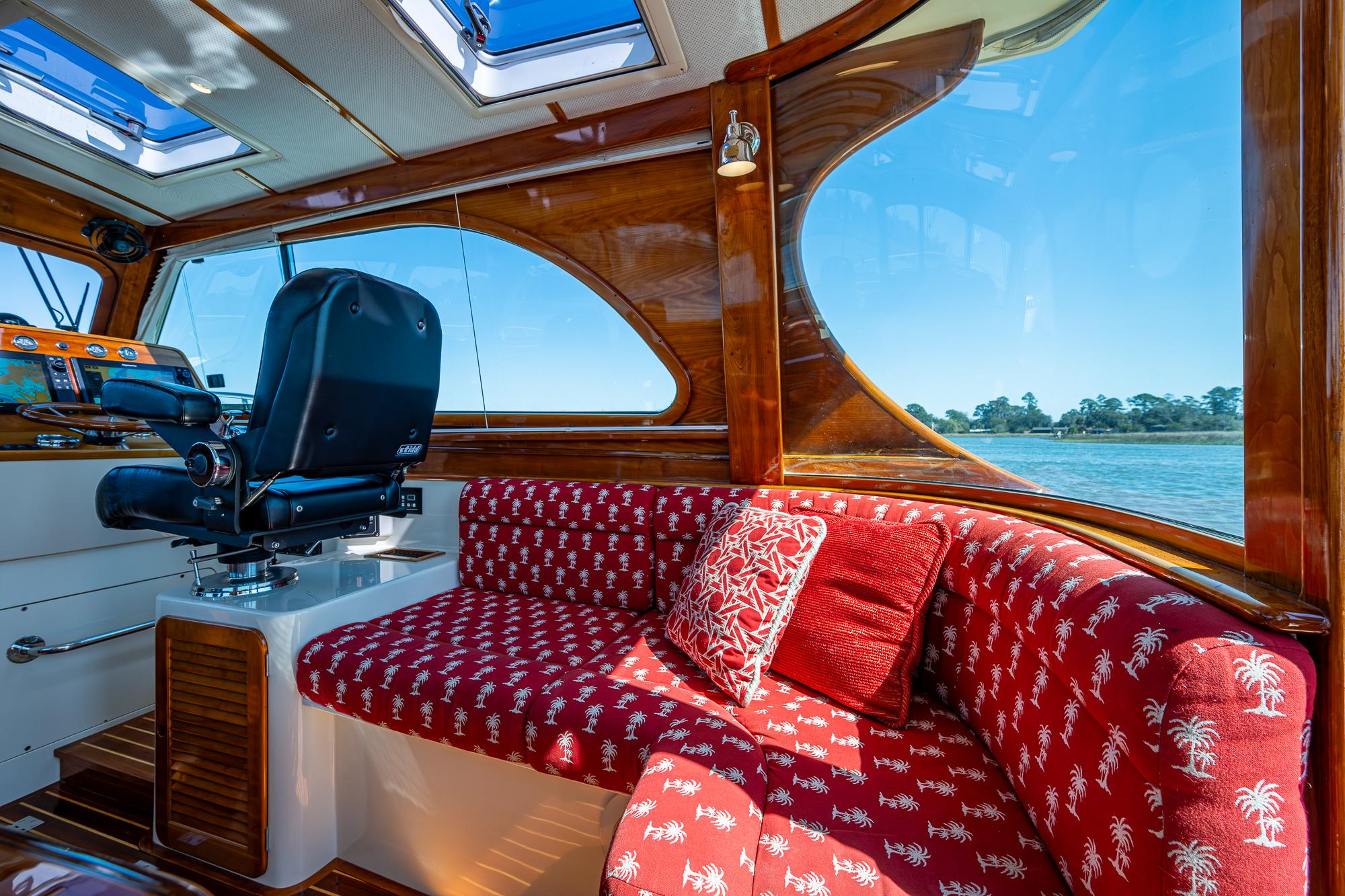

PILOTHOUSE INTERIOR/SALON:

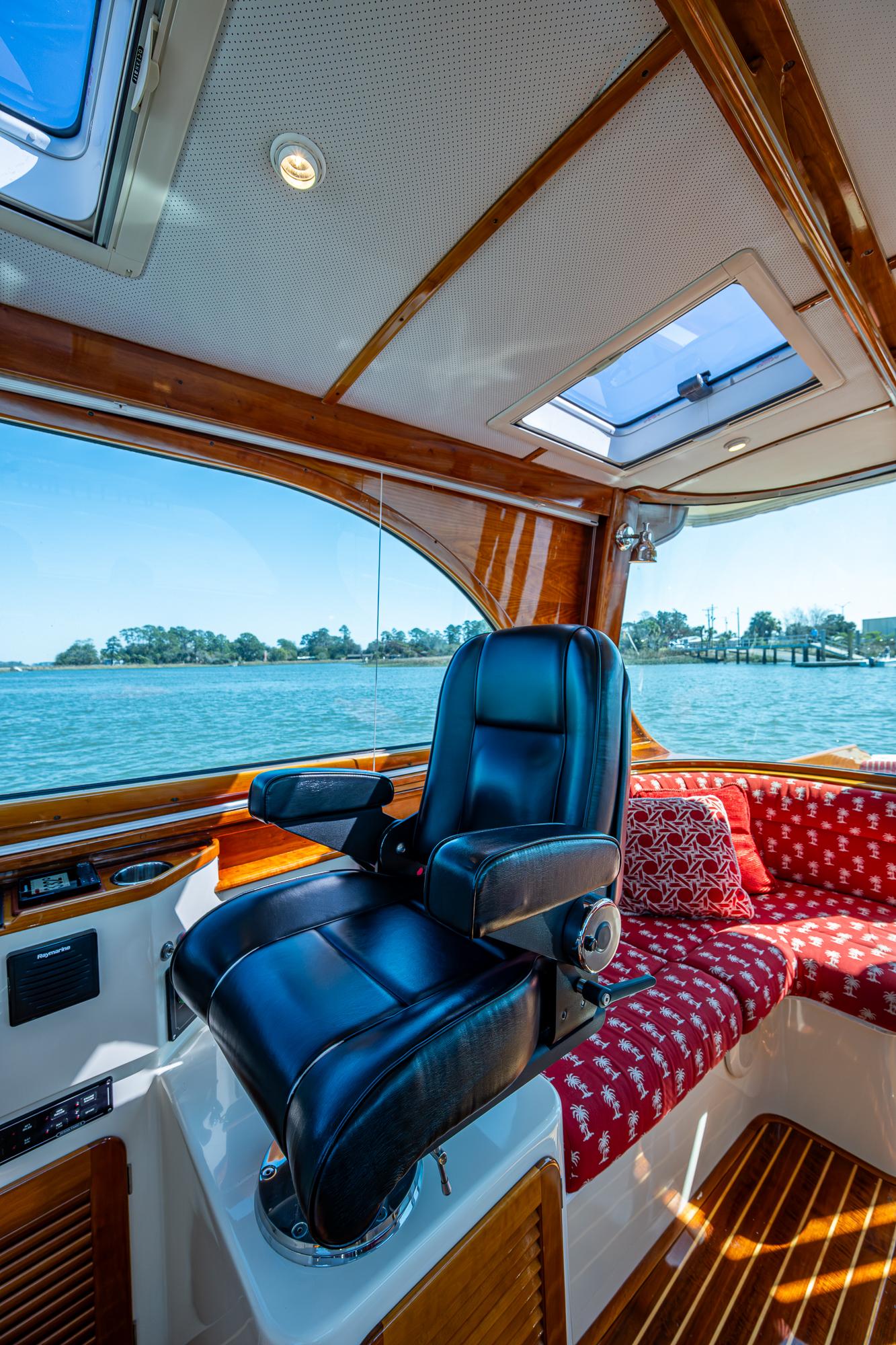

The Pilothouse has the helm to starboard with manually operated Stidd seat, and manually operated Stidd navigator’s seat to port. There are two L-shaped cushioned settees aft in pilot house port and starboard.
- Gloss varnished aft enclosure with custom curved back glass and upgraded teak door.
- Stidd hi-lo manual table to port.
- Padded table covers.
- (2) Stereo speaker.
- Storage under port and starboard settees.

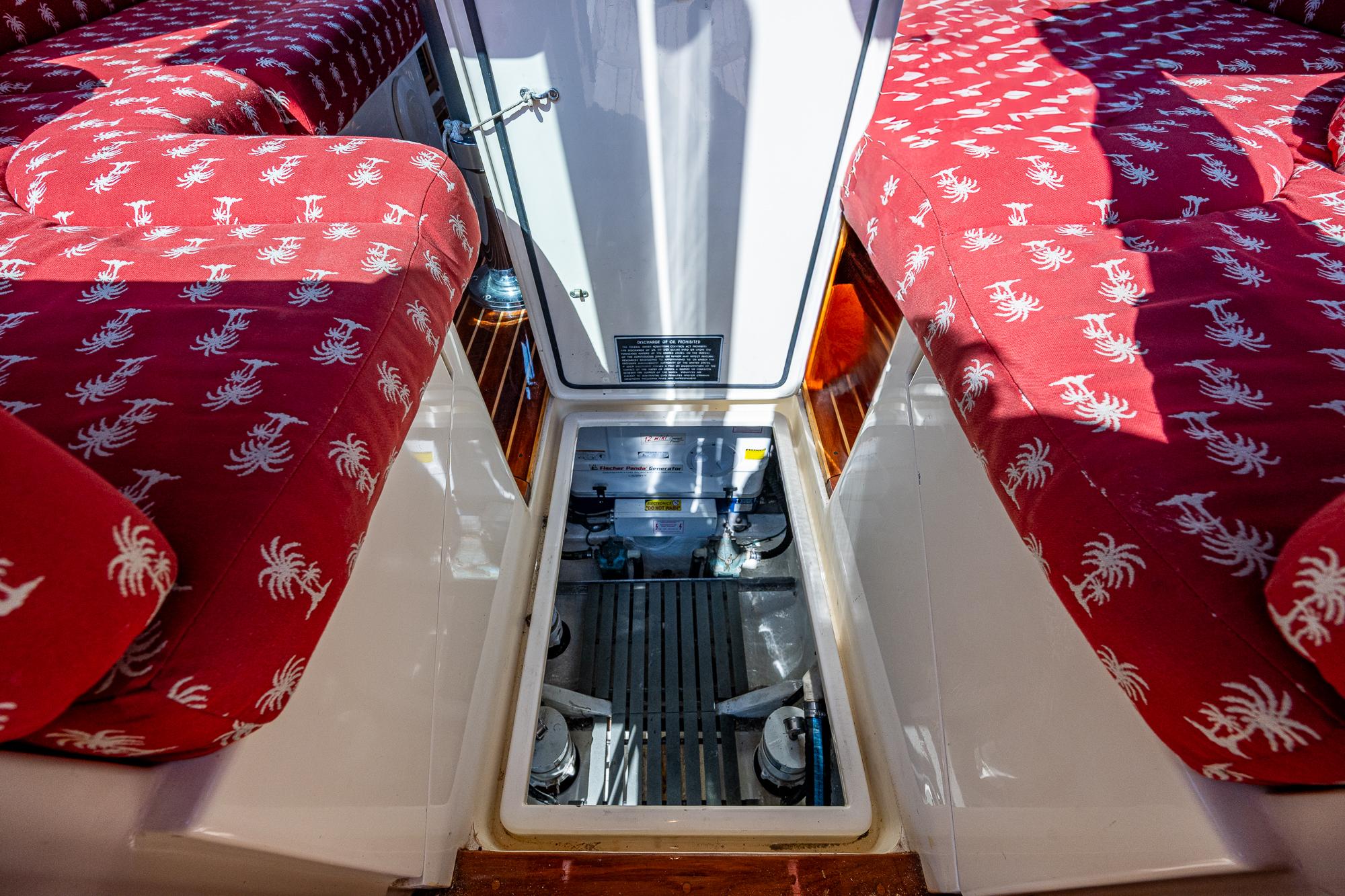

- Engine room day hatch in deck sole aft.
- Storage locker forward deck sole.
- Gloss varnished Teak dash and window trim.
- Gloss varnished teak and tulip wood sole.
- (2) Varnished teak handrails in pilothouse, overhead port and starboard.
- Stidd Ravenswing Black Ultra-Leather covered Helm/Salon seats port and starboard forward with chrome plated bases.
- OceanAir Skysol pleated blinds for side windows.
- Reverse-cycle air conditioning ducts port and starboard. (Replaced 2022)
- U-line icemaker is mounted under helm seat and accessed through a louvered teak door.
The Pilothouse has three forward tempered glass fixed windows with intermittent windshield wipers and freshwater washers. The pilothouse side windows slide open to give the helmsmen and crewmembers additional communication to the dock as well as additional ventilation. Side windows are tinted gray.
- White noise-absorbent overhead with varnish battens.
- Four overhead opening hatches for excellent ventilation.
- Oceanaire sunscreens on pilothouse hatches with screen or shade.
- Overhead recessed halogen lamps on dimmers provide lighting.
Navigator/Passenger's Area (forward to port) has a gloss varnished dash. The Navigator's chair is a Stidd chrome pedestal with folding footrest and is covered in Ravenswing Black UltraLeather, slides forward and aft, up & down and pivots manually.
Outboard the passenger seat is a varnished teak shelf with fiddle rail. The main DC/AC electrical breaker panel is under this shelf – the electrical panel has been hinged for easy access.
- Galvanic isolator monitor panel.
- 12-volt (cigarette style) and a 110-volt outlet in this area.
- Air conditioner outlet vent
- Gooseneck style chart light
- OceanAir Skysol pleated blinds for side windows

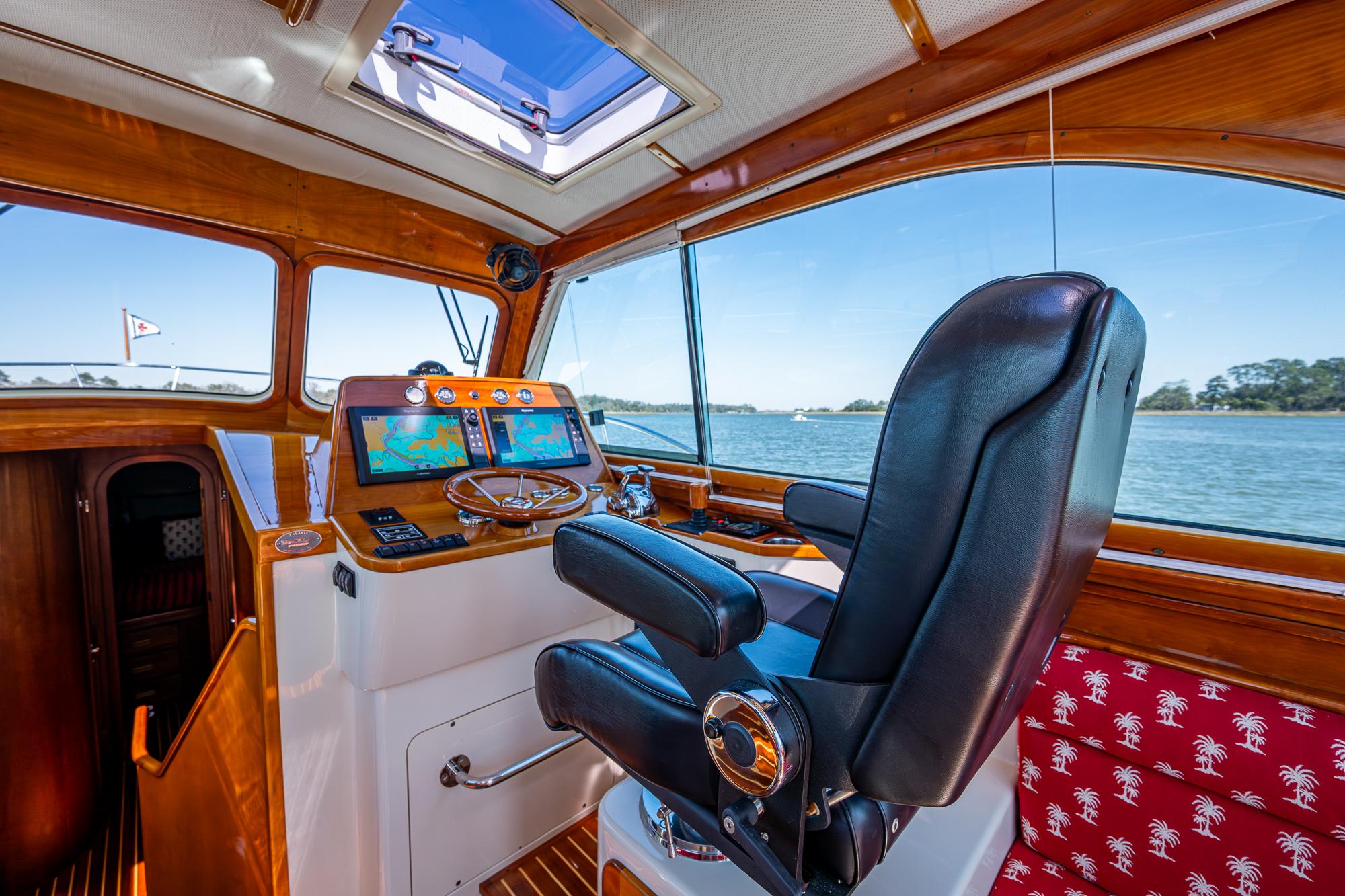

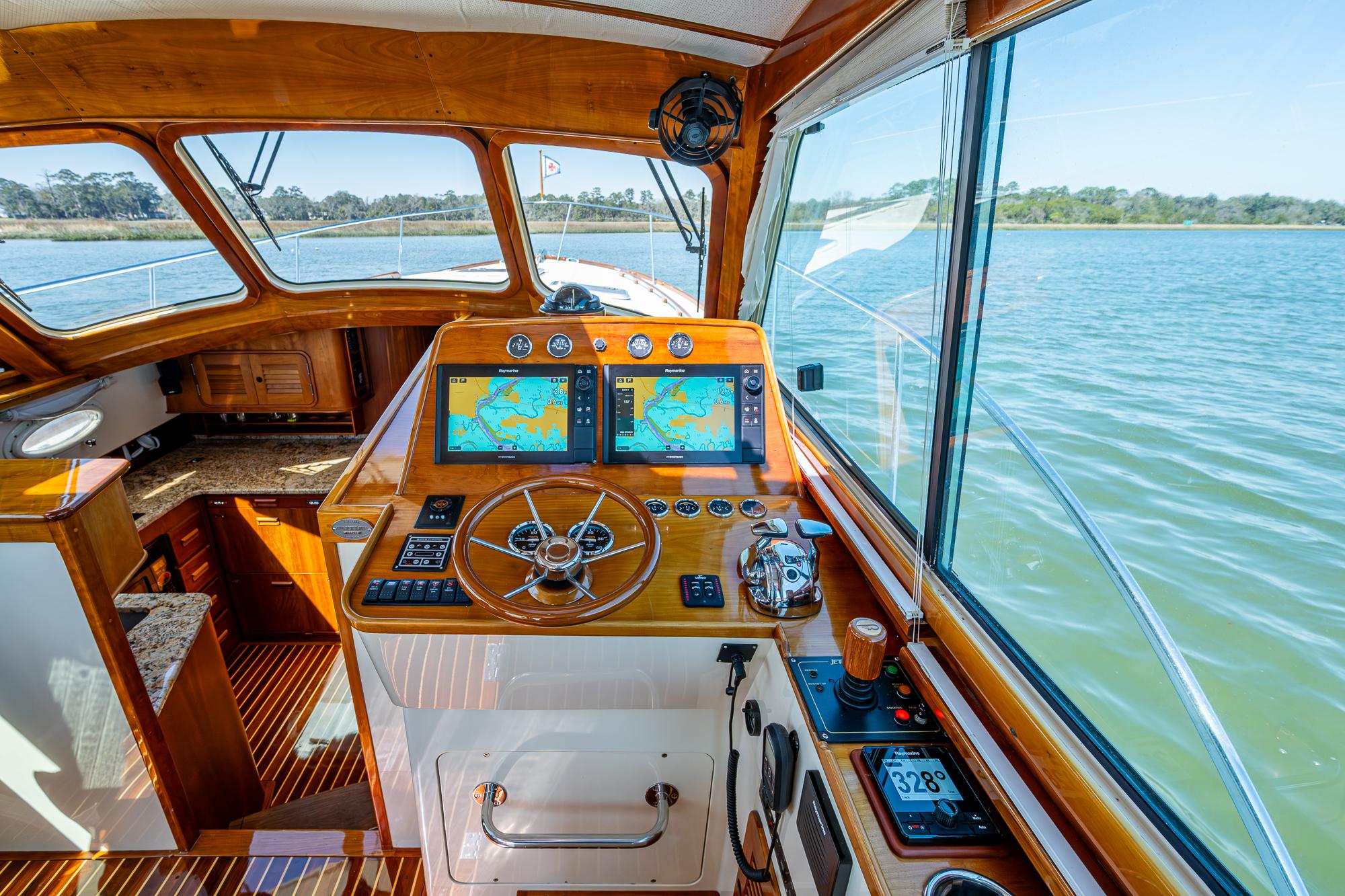

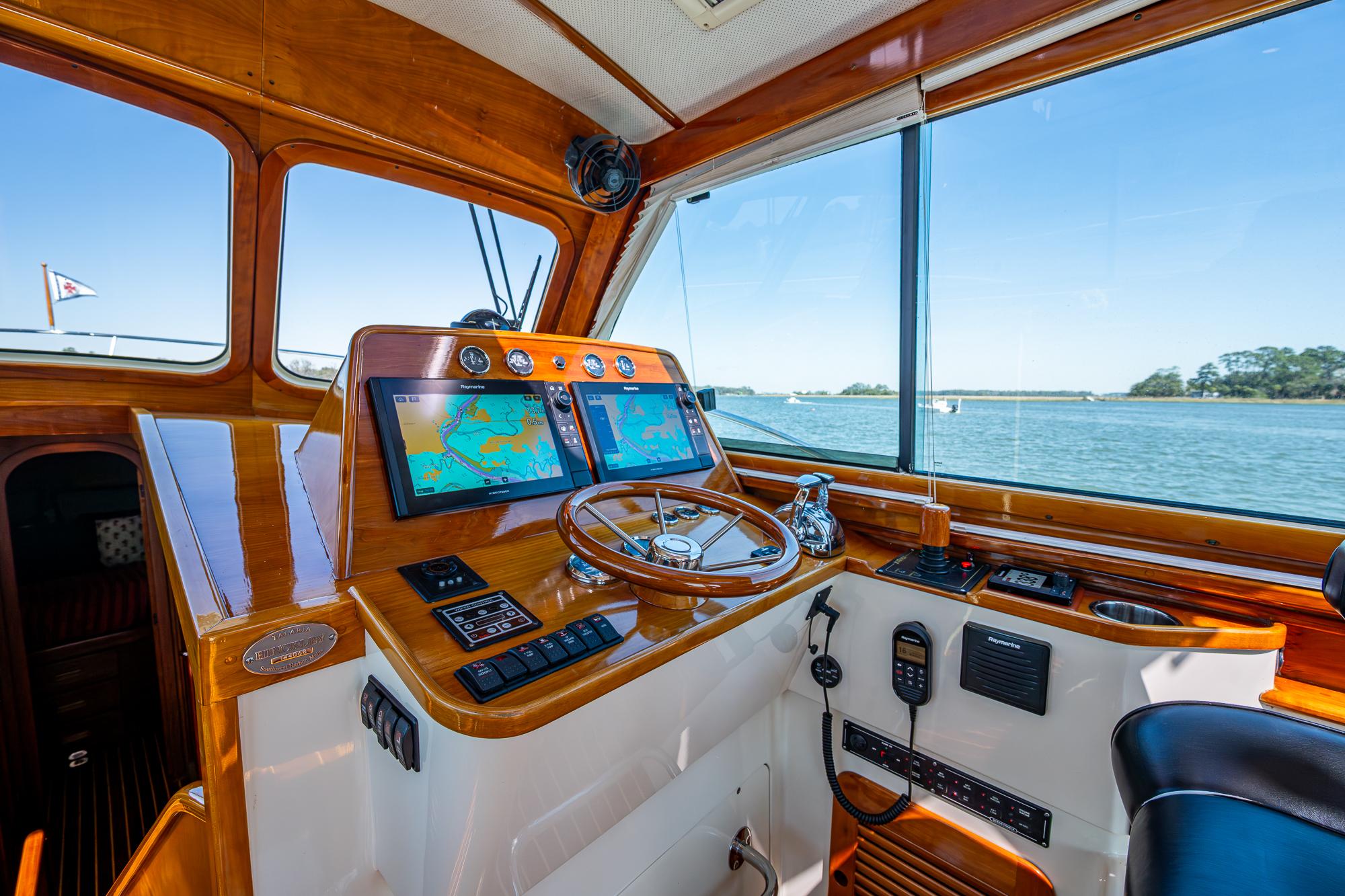

HELM:
Gloss varnished teak dash with Hinckley JetStick, dual Axion Pro 12 color multi-function display, engine controls and gauges, remote controls and a 14" teak rimmed steering wheel. The electric helm seat is covered in matching Revenswing Black UltraLeather, slides forward and aft, and pivots manually, with chrome base. Forward of the helm seat is a stainless steel footrest. A louvered teak door under the helm seat provides access to the icemaker. Outboard of the helm seat is a varnished teak shelf with fiddle which houses the Hinckley JetStick® (upgraded in 2011), a cup holder, and more. A 12-volt outlet is near the key switches.
- Icemaker – under helm seat
- Marine air digital control.
- Back-up bucket control.
- Fireboy override switch
- Alarm system monitor panel
ELECTRONICS & NAVIGATION EQUIPMENT:
- Raymarine Axion Pro 12 Navigation display (Installed 2020)
- Raymarine 48” open array HD radar (Installed 2020)
- Sirius satellite weather module (Installed 2020)
- AIS
- PowerMax cell phone power amplifier and wireless cellular repeater with rooftop antenna
- Raymarine P70RS Autopilot (Installed 2020)
- Icom IC-M602 DSC VHF radio with loud hailer.
- Danforth Global Balance Binnacle Compass
- Mathers electronic engine controls.
- Port and starboard oil pressure and water temperature gauges
- Alarm panel with light indicator and audio alarm
- Fireboy override switch
- ACR remote spotlight control
- Fuel transfer pump on/off switches
- Lenco trim tab controls and indicators
- Exalto windshield wiper controls
- Jet nozzle angle indicator
- Fuel tank gauges
INTERIOR ACCOMMODATIONS:
From the Pilothouse forward down two-steps are the interior accommodations. There is a full galley to port and a dining salon/settee opposite to starboard. The Head and separate Shower areas are forward to port and starboard. The Master Cabin is forward.
- Galley refrigeration upgraded to drawer style refrigeration (Installed 2009)
- Dedicated silverware drawer added (Installed 2009)
- Custom storage locker over galley forward with glass storage to inboard face.
- Custom glassware storage below forward storage locker
- Upgraded marble countertops
- Dimmers on all interior lighting
GALLEY and DINETTE LAYOUT:
Adjacent to the galley is a U-shaped dinette/salon to starboard and the galley to port, both convenient to the pilothouse. Both areas finished in satin-varnished cherry, has white fabric overheads with cherry battens, and a teak and tulip sole.
- Single overhead opening hatches add extra light and ventilation to this full-beam area.
- Stereo speakers
- Custom storage lockers above dinette aft with open storage area on the inboard face and accessible from the helm.
- Bose Lifestyle 28 entertainment system and flat screen TV mounted forward at dinette
- Apple TV added
- Step storage to helm.
- Inverter control panel (galley aft bulkhead).
- Generator control panel (galley aft bulkhead). (Replaced 2016)
- Water gauge (galley aft bulkhead).
- Dimmable overhead halogen lights.

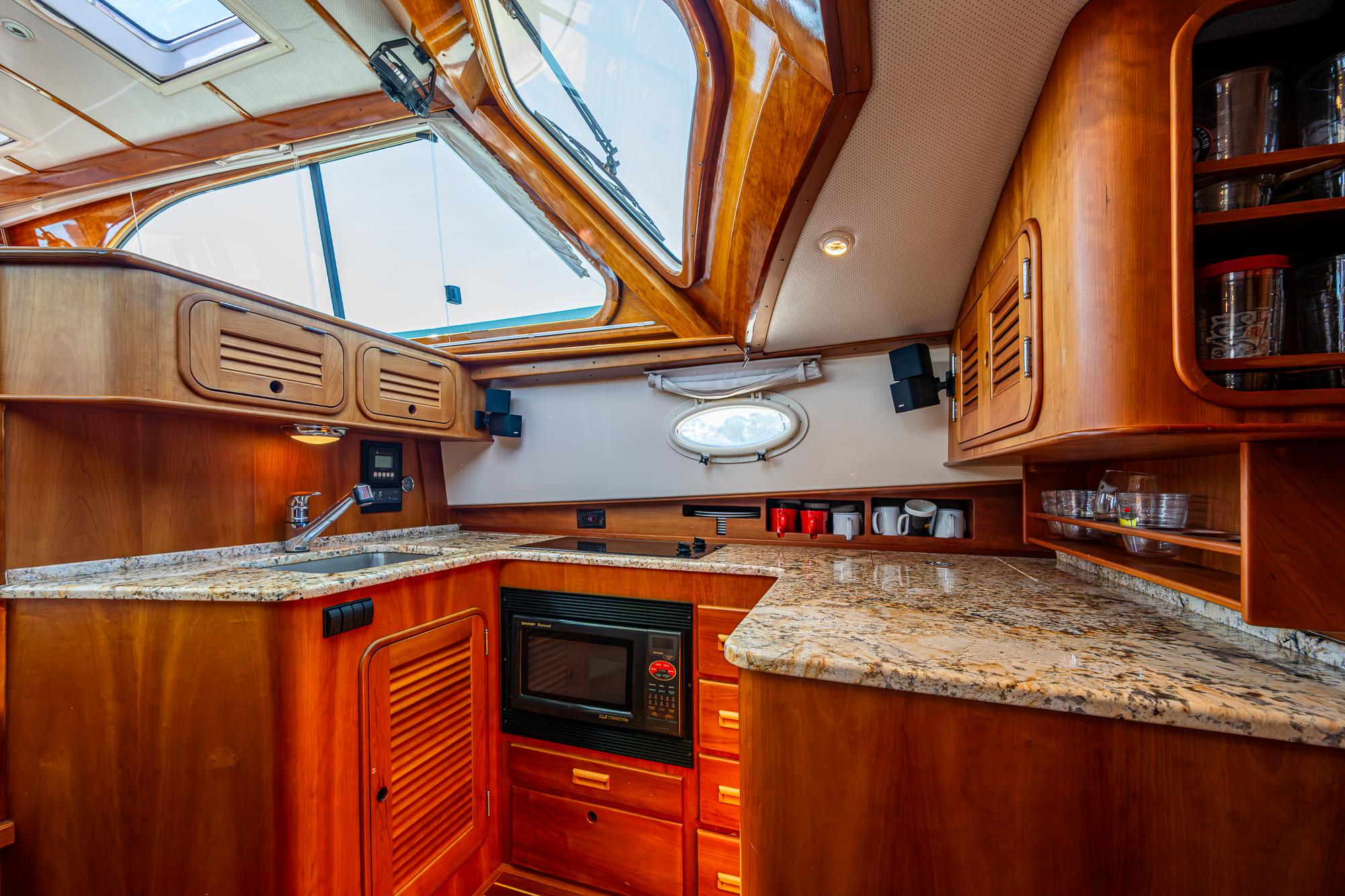

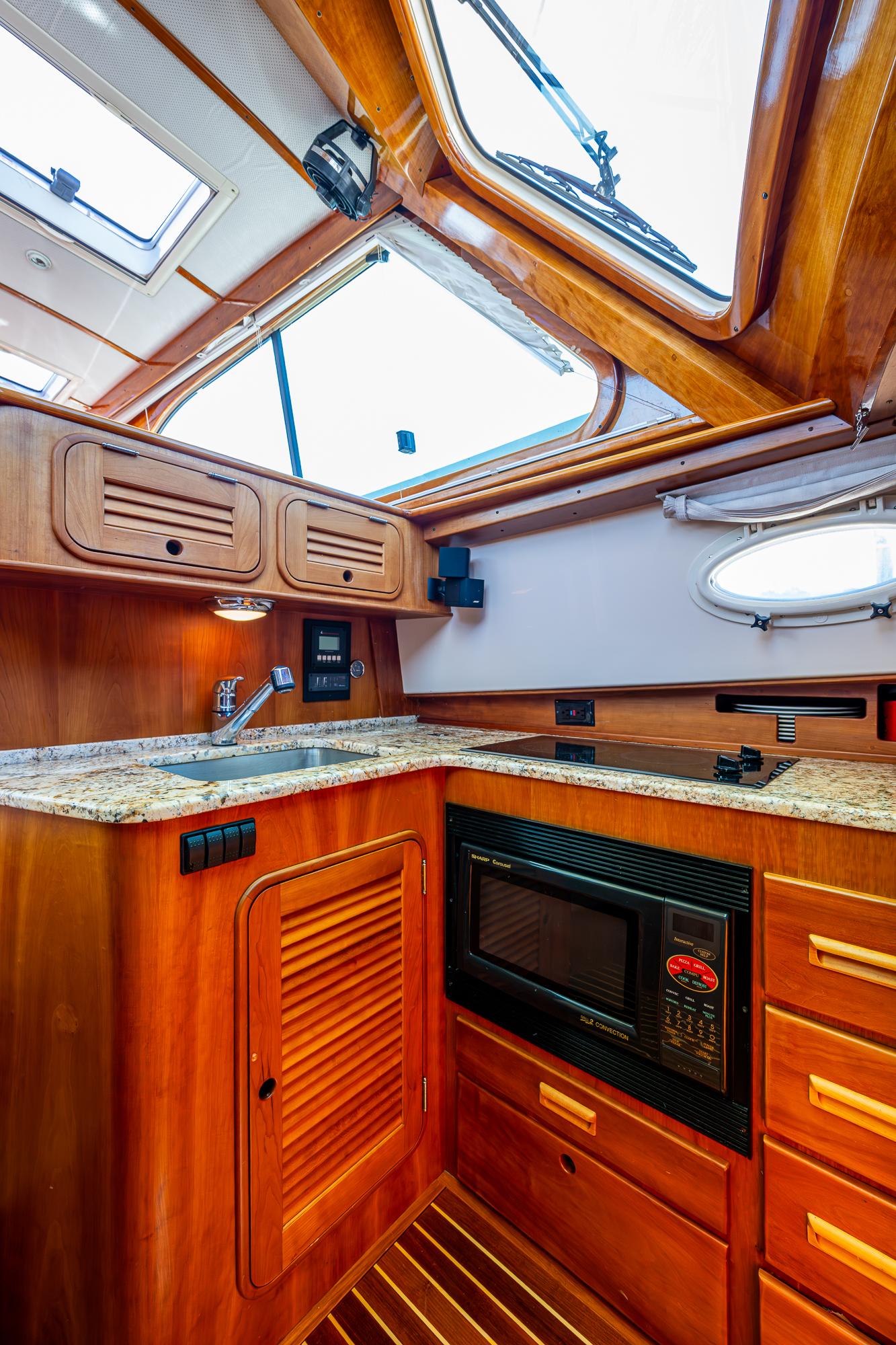

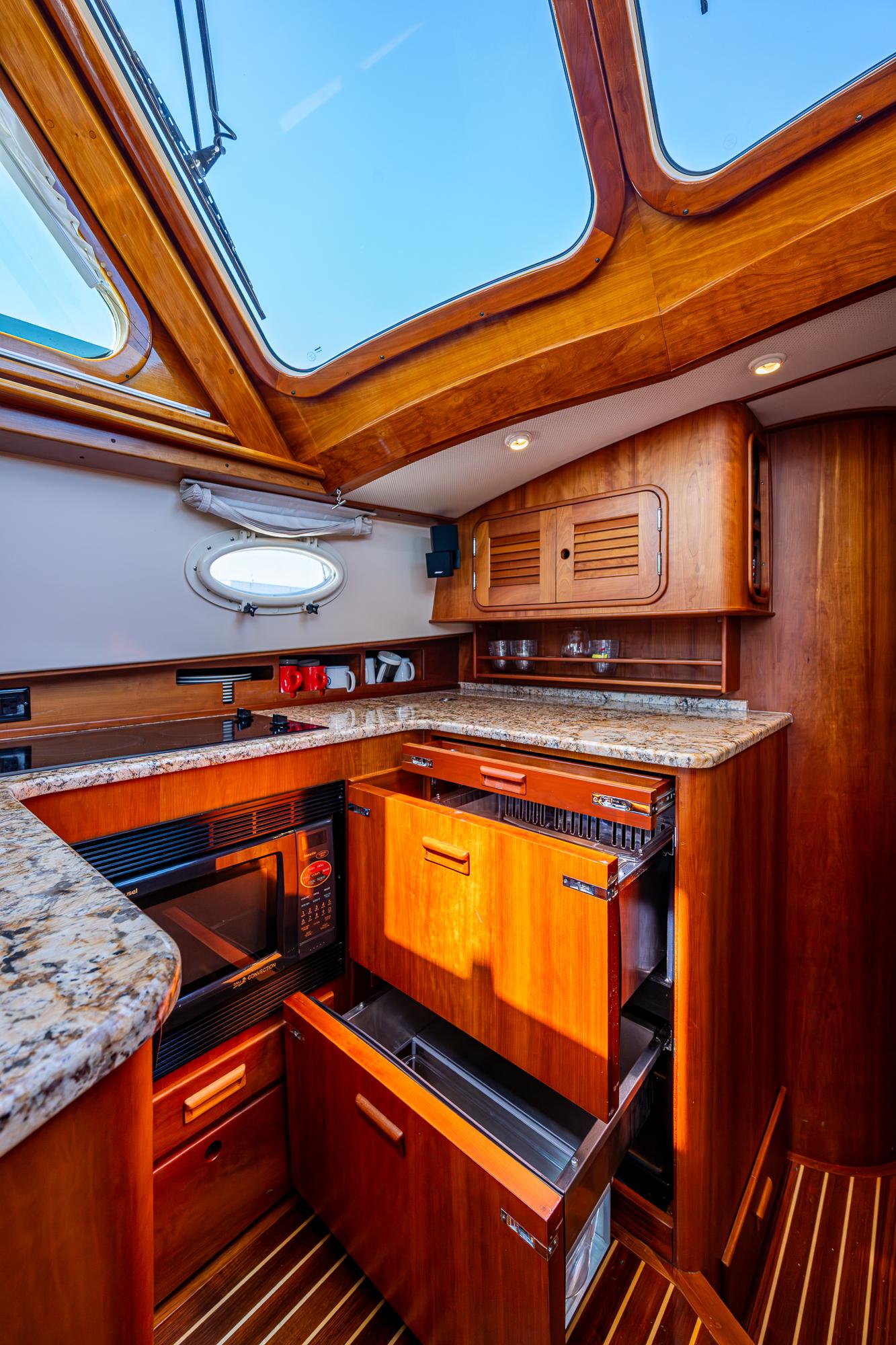

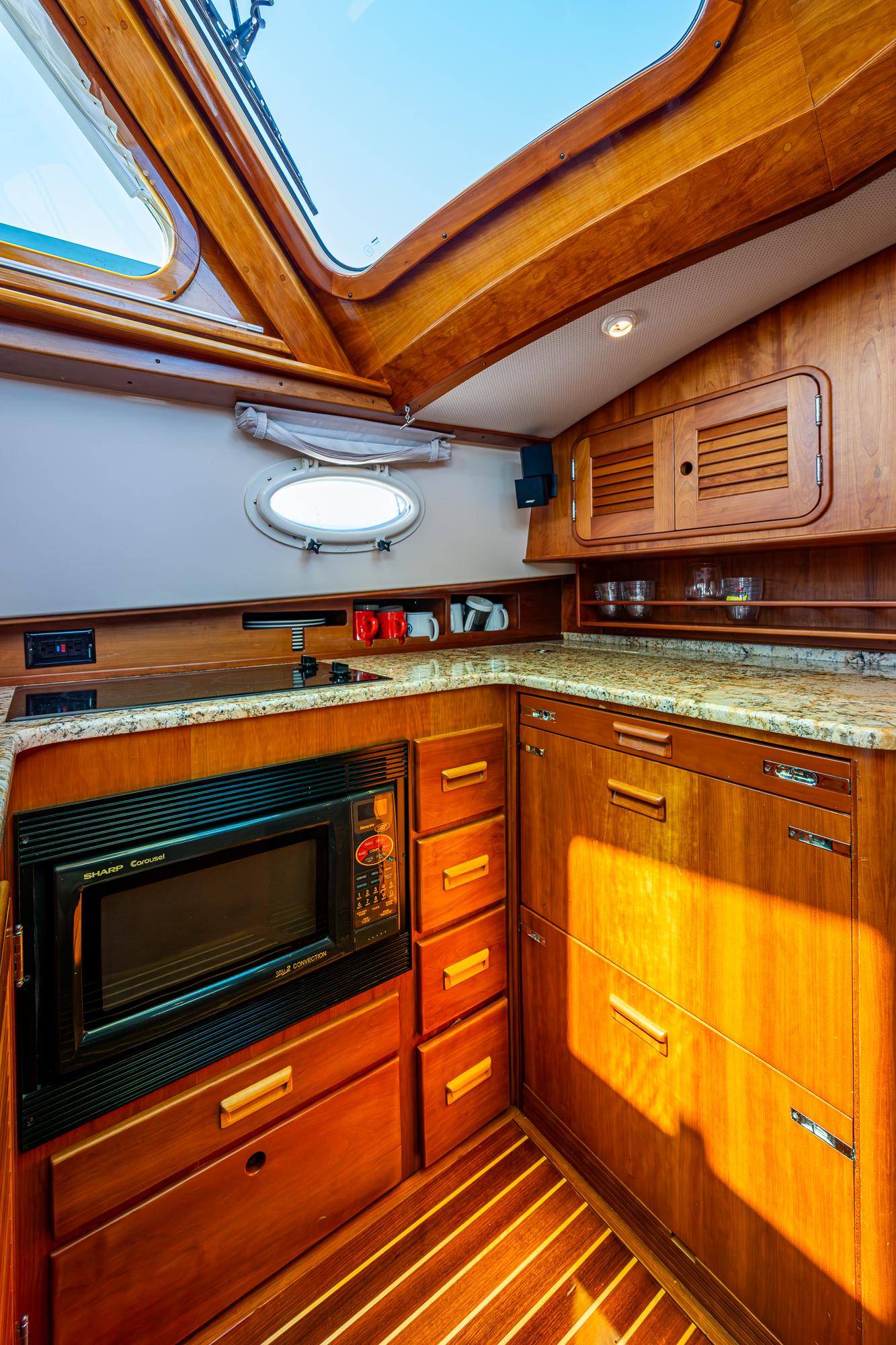

GALLEY (Portside):
Portside mid aft is the U-shaped GALLEY finished in satin-varnished cherry cabinetry with louvered locker doors and Sand Corian countertop with fiddled edges. Opening window port with shade.
- Overhead recessed halogen lights on dimmer
- 12-volt dome light over sink with dimmer.
- Double storage locker above sink.
- Under mounted large single stainless steel sink - with Grohe fixture/sprayer.
- Hot and cold pressure fresh water system.
- Kenyon Two-burner electric smooth cook top.
- Convection microwave built-in under cooktop
- Cold plate compartment top loading freezer forward
- Double drawer refrigerator (Installed 2009)
- Double 110-volt outlet
- Countertop has back splash forward and aft to protect the cherry laminated bulkhead.
- Outboard of the sink is a countertop top-opening storage bin.
- Under sink locker storage with door.
- Alcove storage outboard of counter top with dividers for cups/glasses and plates.
- (4) Drawers under counter forward of microwave.
- Custom storage locker and glassware storage forward.
- Additional storage drawer inboard and below of refrigerator.
- Hallway overhead halogen light with dimmer.
- Varnished teak and tulip wood sole.

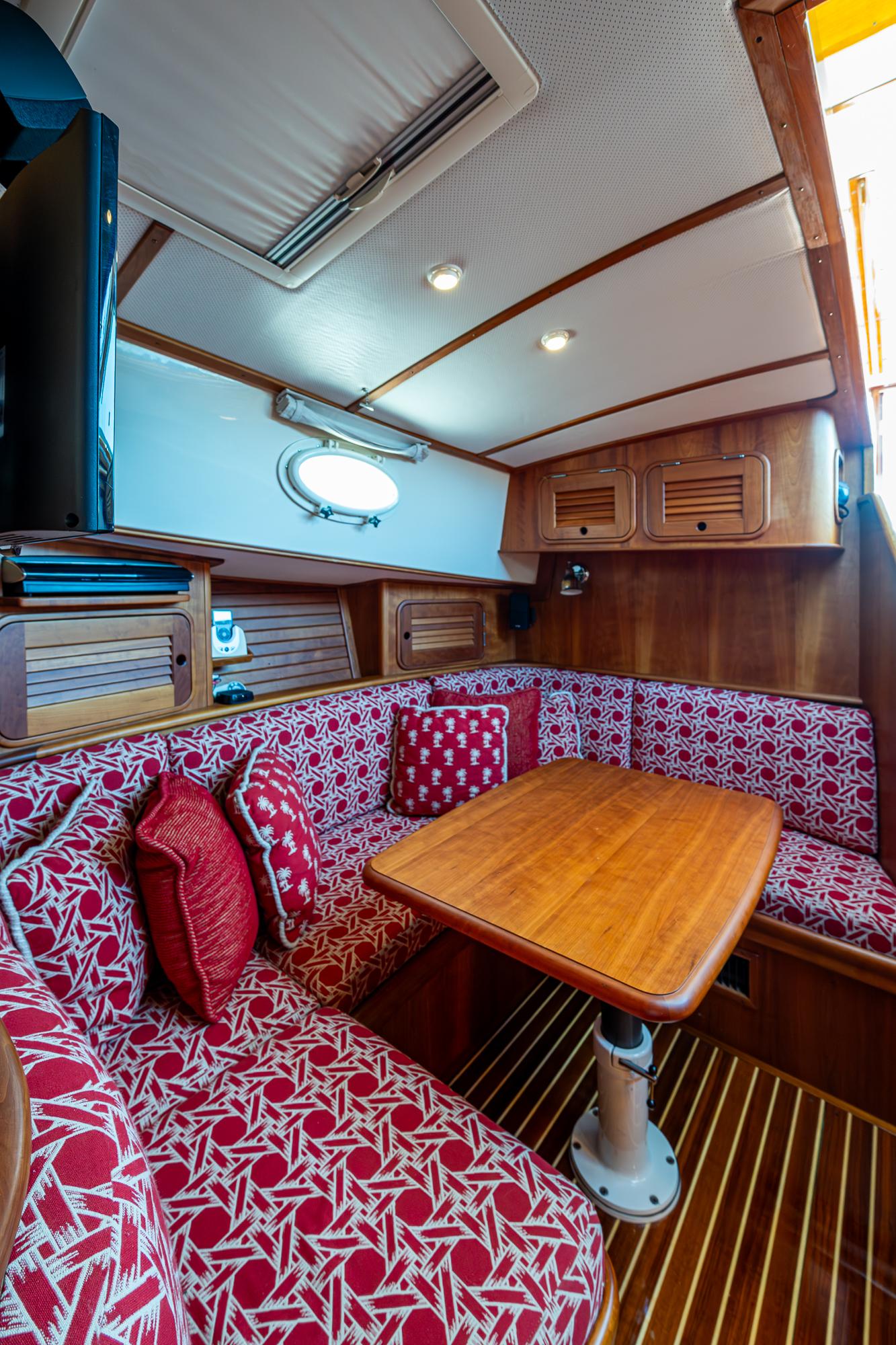

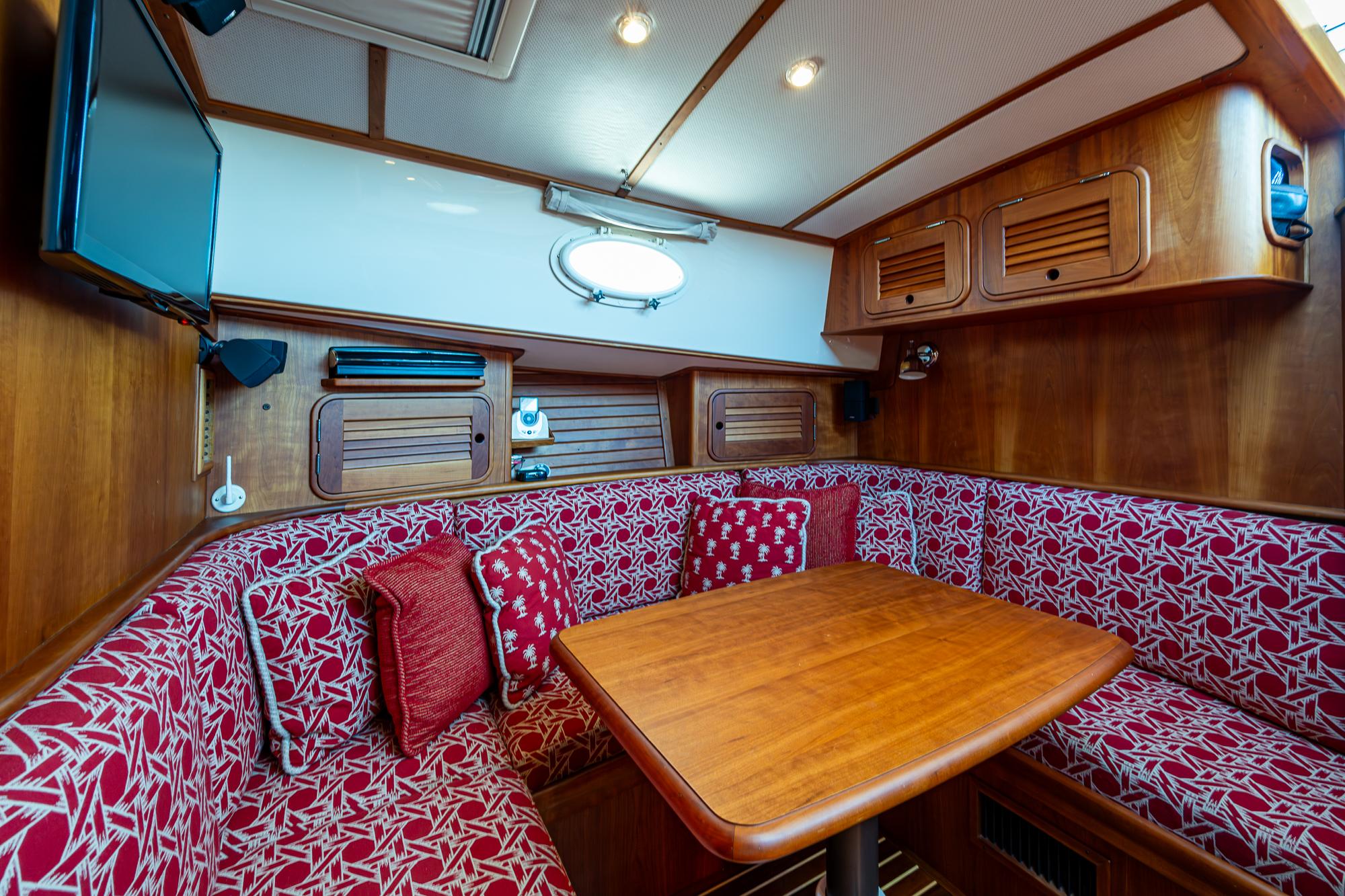

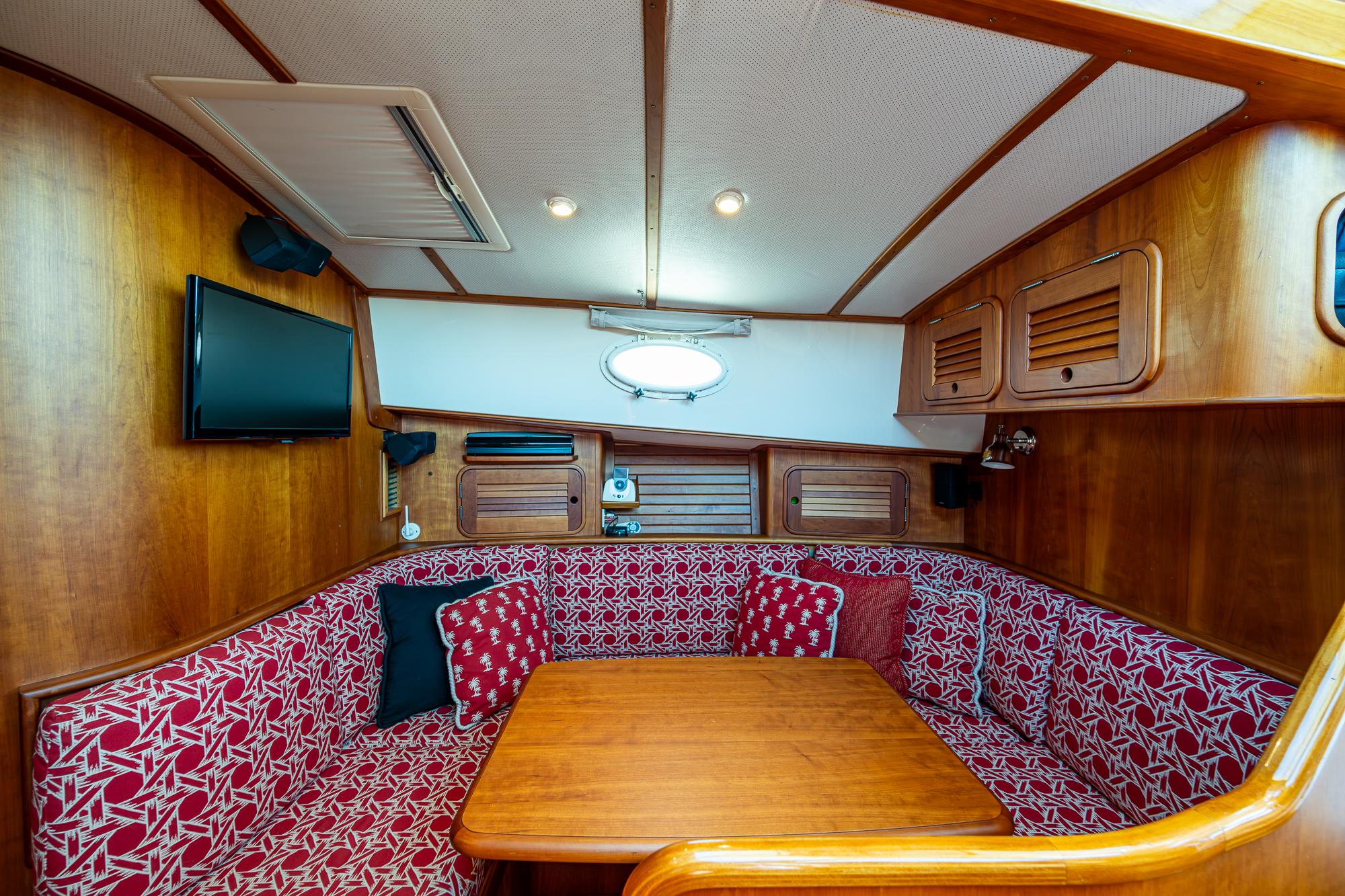

DINING AREA SETTEE :
U-shaped dining area is opposite the galley to starboard and comfortably seats five. Sunbrella fabric covers the dining cushions. The cherry dining table with a padded cover is on a Stidd pedestal that manually slides up and down and that allows the table to form a double berth. The drop down position includes a matching covered filler cushion. Outboard are louvered door cherry lockers, storage alcove, and stereo speakers. Opening portlight outboard with curtain.
- Bose entertainment system with flat screen TV
- Custom double storage cabinet aft with open side storage compartment
- Varnished teak and tulip sole
- Courtesy step light to galley
- Two Frigast stainless steel reading lamps fore and aft and one directional overhead halogen light
- Storage under seats
- Overhead hatch with sky screen shade
- Air conditioning vent.

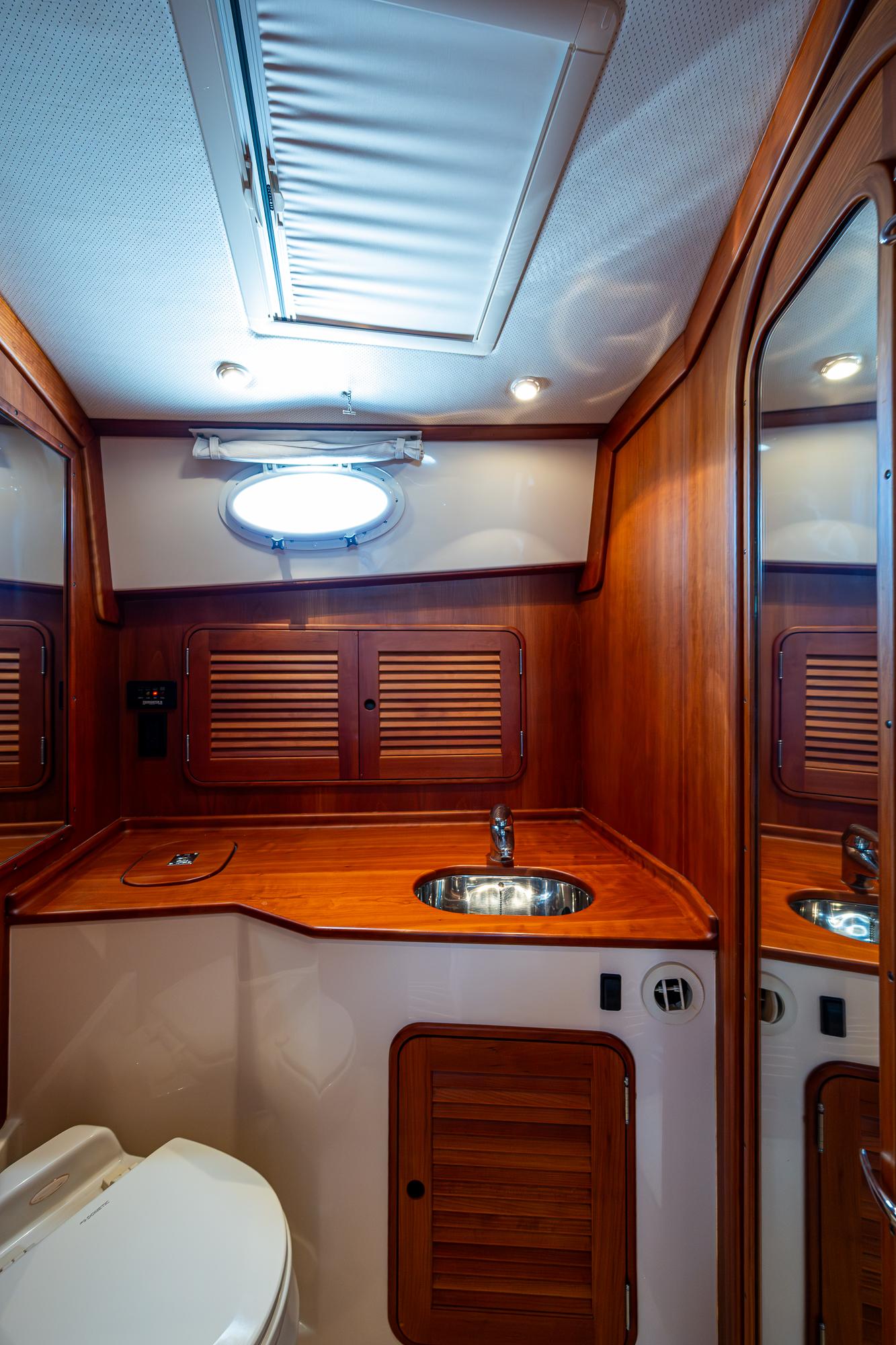

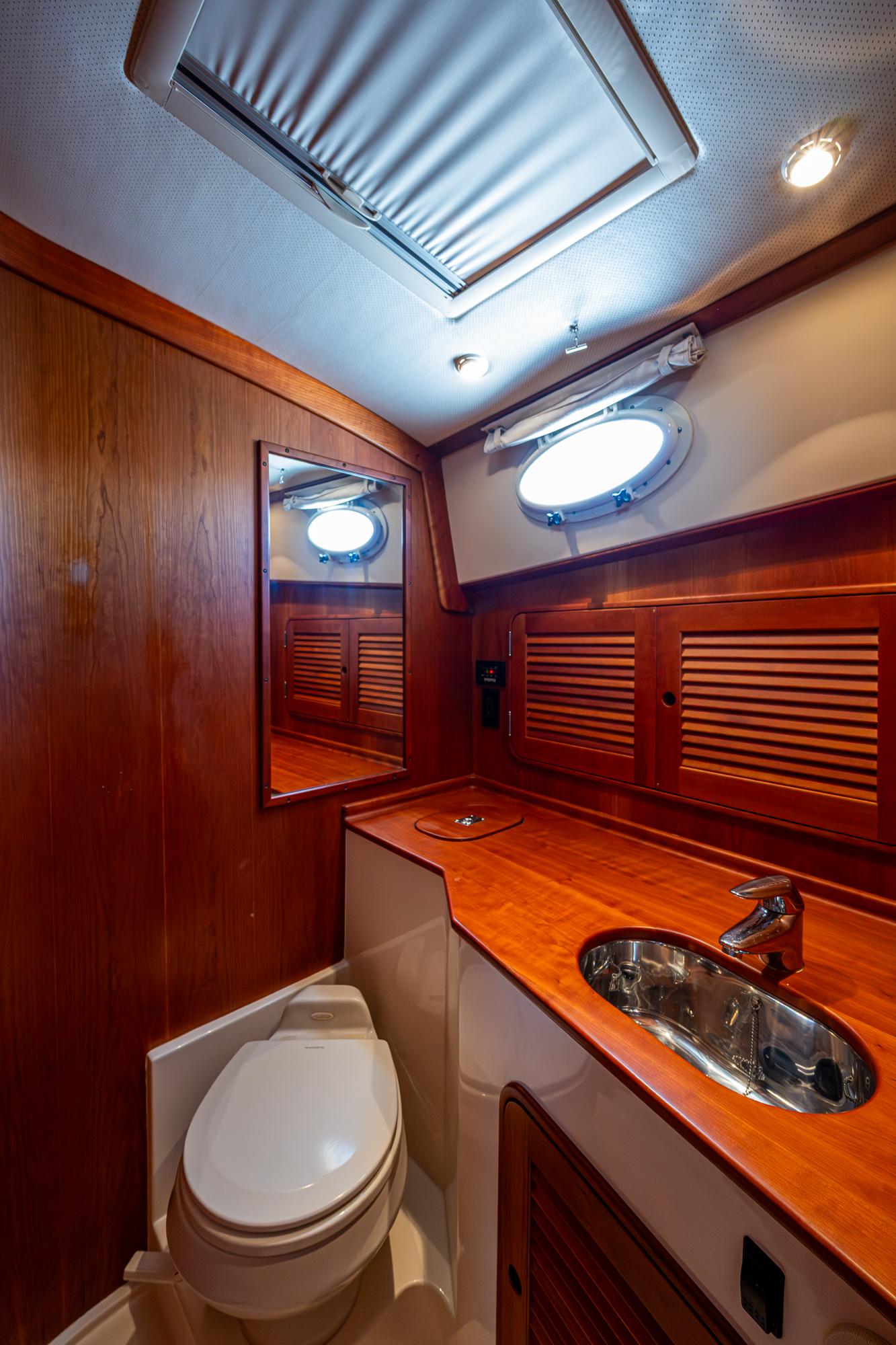

HEAD:
Next forward of the galley and dining area is the en-suite head with sink, vanity and marine toilet. There are opening ports and opening deck hatches in both the head and the shower.
TO PORT:
The head area has light cream-colored fiberglass sole with molded-in nonskid. The bulkheads in the head are satin varnished cherry.
- Gloss varnished cherry countertop with polished stainless steel undermounted sink, Grohe fixtures, with hot & cold pressure water
- (2) Cherry-trimmed mirrors - full-size mounted on the door to the forward cabin and half size forward bulkhead mounted
- Vacuflush marine head is plumbed directly to the 43-gallon holding tank that can then be emptied via a deck fitting to a discharge facility or overboard through the Sealand macerator pump
- Divided storage locker outboard
- (2) Recessed halogen lights on dimmer
- Double 110-volt outlet
- Tankwatch 4 holding tank monitor
- Overhead hatch with sky screen shade

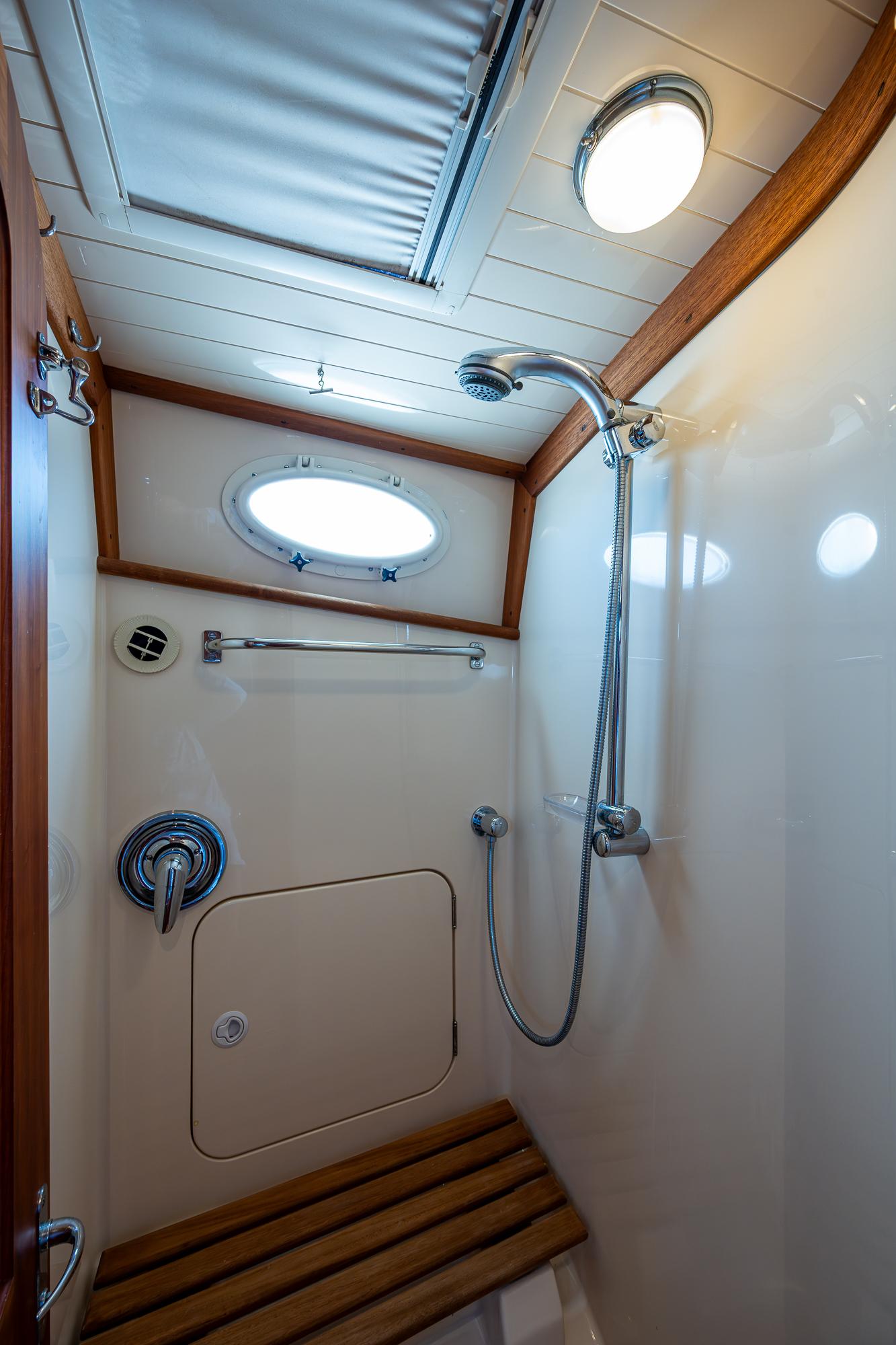

SHOWER:
A separate shower is starboard with Cream Formica bulkheads and fiberglass sole with molded-in nonskid.
- Divided storage/towel locker outboard over the teak shower seat.
- Stainless steel towel rack is mounted above the outboard locker.
- Outlet for the reverse-cycle air conditioning system in the shower.
- Removable hand held Grohe shower head.
- 12-volt dome light
- Four (4) towel hooks mounted in shower forward

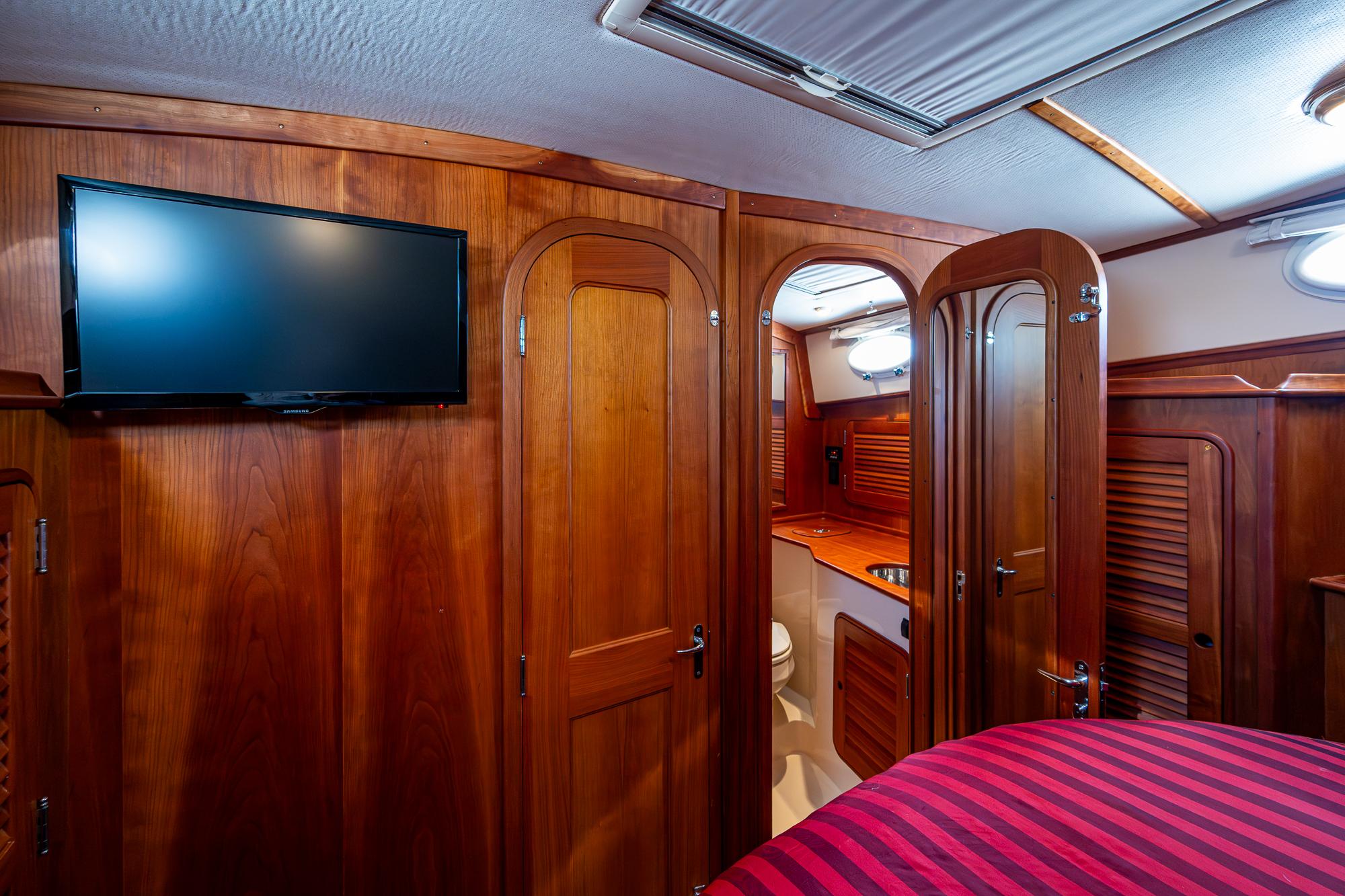

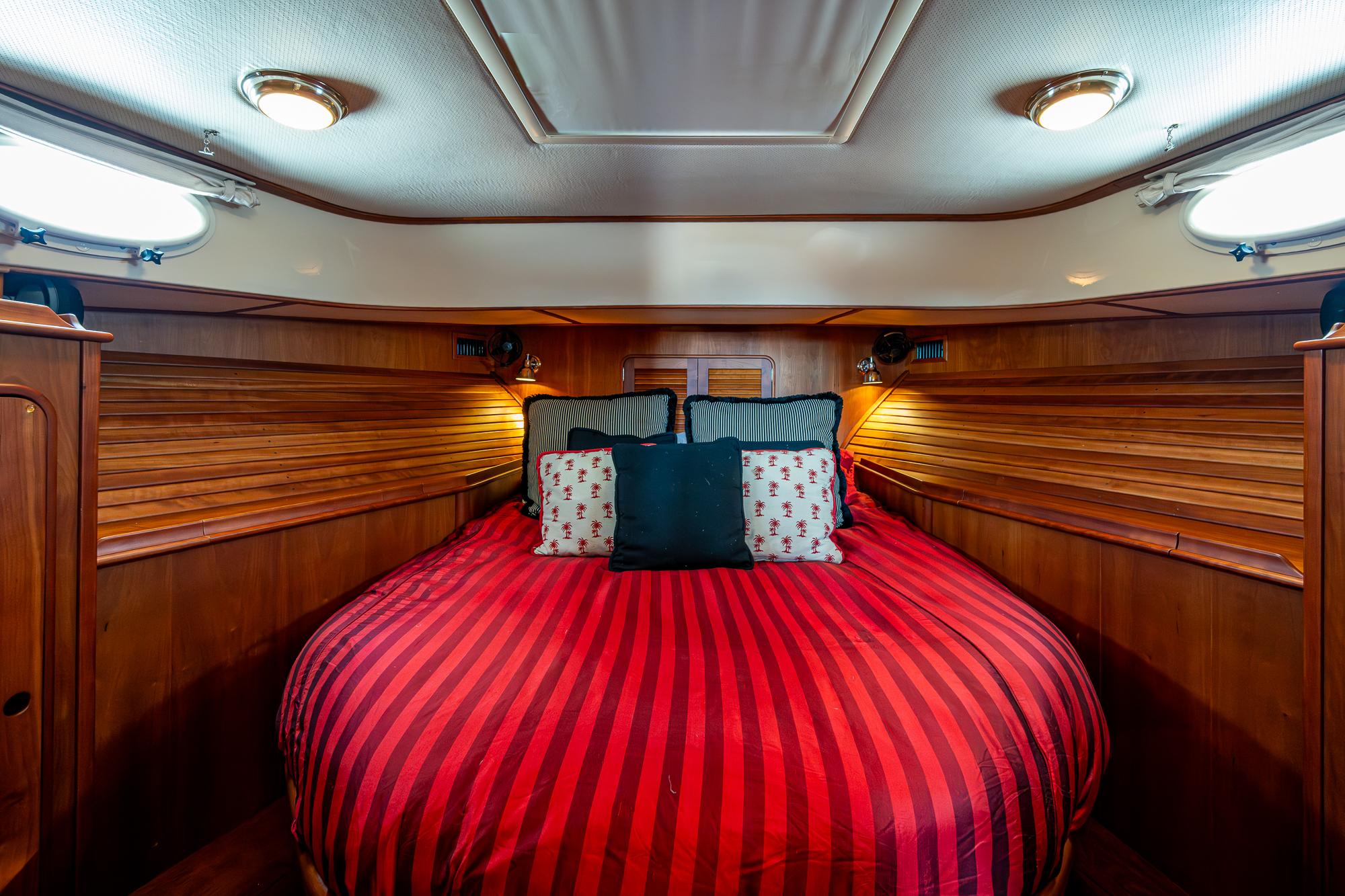

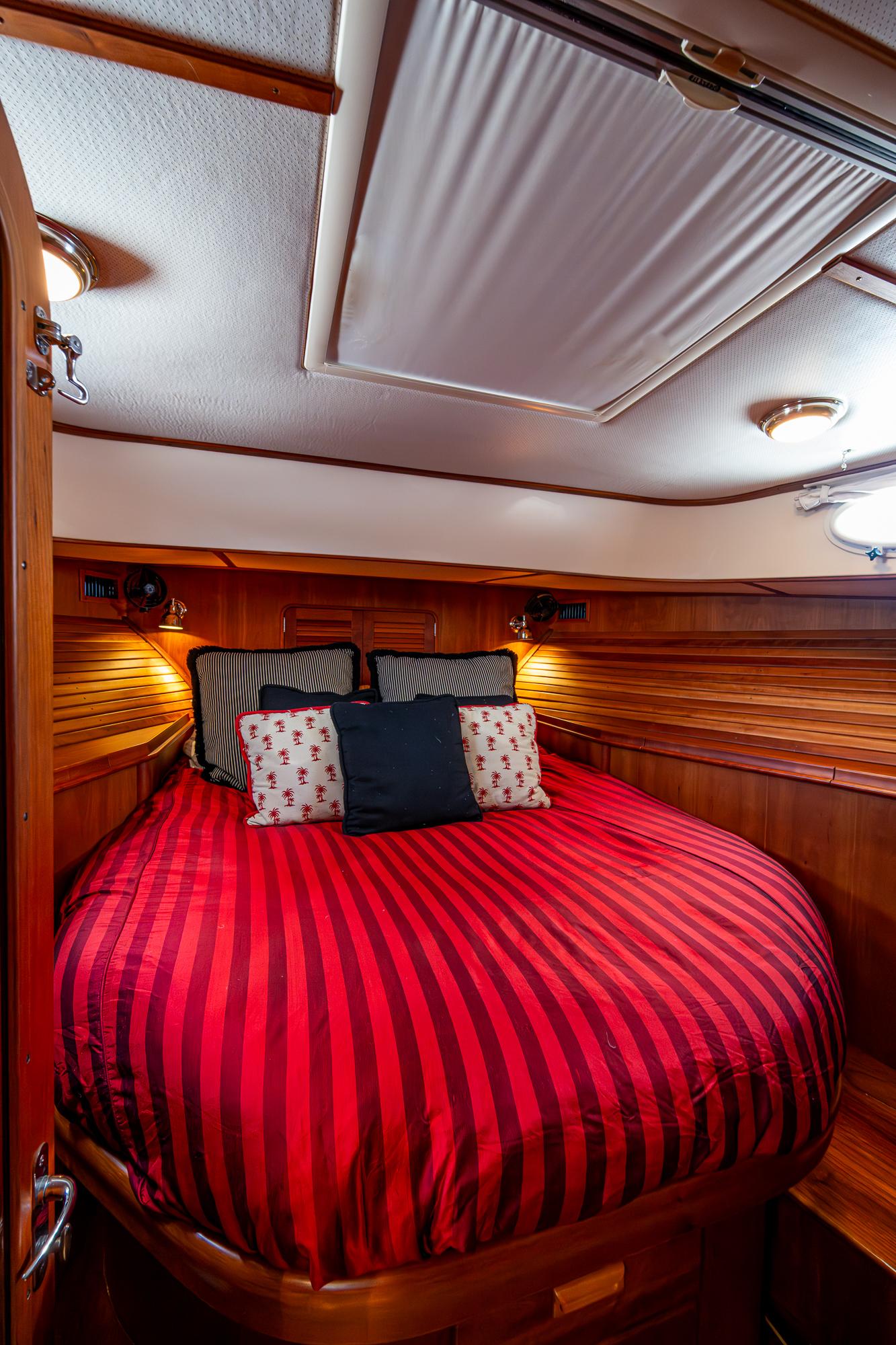

MASTER STATEROOM (Forward Cabin):
Forward, the locking cabin solid cherry door opens to a centerline queen berth. Storage includes double doors forward to the chain/rope locker, port and starboard hanging lockers, and outboard shelves and compartments. The forward cabin has a large overhead hatch and there are oval opening window ports, starboard and portside for plenty of extra light and ventilation.
- Hinckley Company handcrafted mattress.
- Flat screen TV with Apple TV
- Two (2) Bose speakers.
- Storage drawers below bunk at foot.
- Outboard, port and starboard of the centerline bunk are storage compartments with lift-up tops
- Hanging lockers port and starboard have a louvered doors and cedar lining and dome lights.
- Two overhead dome lights as well as Frigast reading lamps mounted on the forward bulkhead.
- (2) Hella fans on the forward bulkhead.
- Overhead opening hatch with sky screen shade.
- 110-volt outlet portside
- Port and starboard outboard aft bookshelves.
- Air conditioning ducts port and starboard for either cooling or reverse-cycle heat.
- Private en-suite head entrance with door to the master stateroom.
- Full-length mirror mounted on cabin door
ELECTRICAL SYSTEM:
Separate 12 volt-DC starting and accessories systems – 120/240 volt A/C system with breaker distribution panel:
- (2) Lifeline GPL-31/600CCA batteries - main engine & generator start (Replaced 2020)
- (8) AGM GPL-4C batteries - rated at 440-amp/hr - for 24-volt and 12-volt service (Replaced 2020)
- Custom Bass 12-volt DC electrical circuit breaker panel - with volt and amp meter gauges.
- 12-volt DC 80-amp alternators on port and starboard engines for starting batteries.
- 24-volt DC 100-amp alternators on port and starboard engines for ships service batteries.
- Northern Light 12 kw Generator (713 hrs 4/2013) - rated for 240 volt AC, 60 Hz.
- 30-amp/12-VDC battery charger for start system
- 110-volt outlets: Galley, Head, Engine room, Pilothouse and one custom in Master Stateroom.
- 12-volt outlet (cigarette-style) in pilothouse
- 120-volt and 240-volt AC systems from shore power and generator: (New generator 2016)
- Custom Bass 120-volt AC electrical circuit panel with Hinckley combo 120/240 AC
- Shore power 50-amp 110/220-volts AC cord and Glendinning reel system.
- Statpower Prosine 2.5 inverter/charger charger - 50-amp 24-VDC - with remote monitor/control panel.
OTHER:
- (4) Four caged 12-volt lights in engine room and one caged light in forepeak.
- Battery switches and engine battery parallel
- Copper electrical bonding system – grounding buss system and sacrificial anode.
- GFI protected circuits in galley, engine room and head and in pilothouse.
- Professional Mariner Zinc Saver II.
- The Generator has a 35-amp alternator that can also charge the start batteries.
- The Generator is sound shield mounted and is complete with remote control panel.
MECHANICAL EQUIPMENT & ENGINE DETAILS:

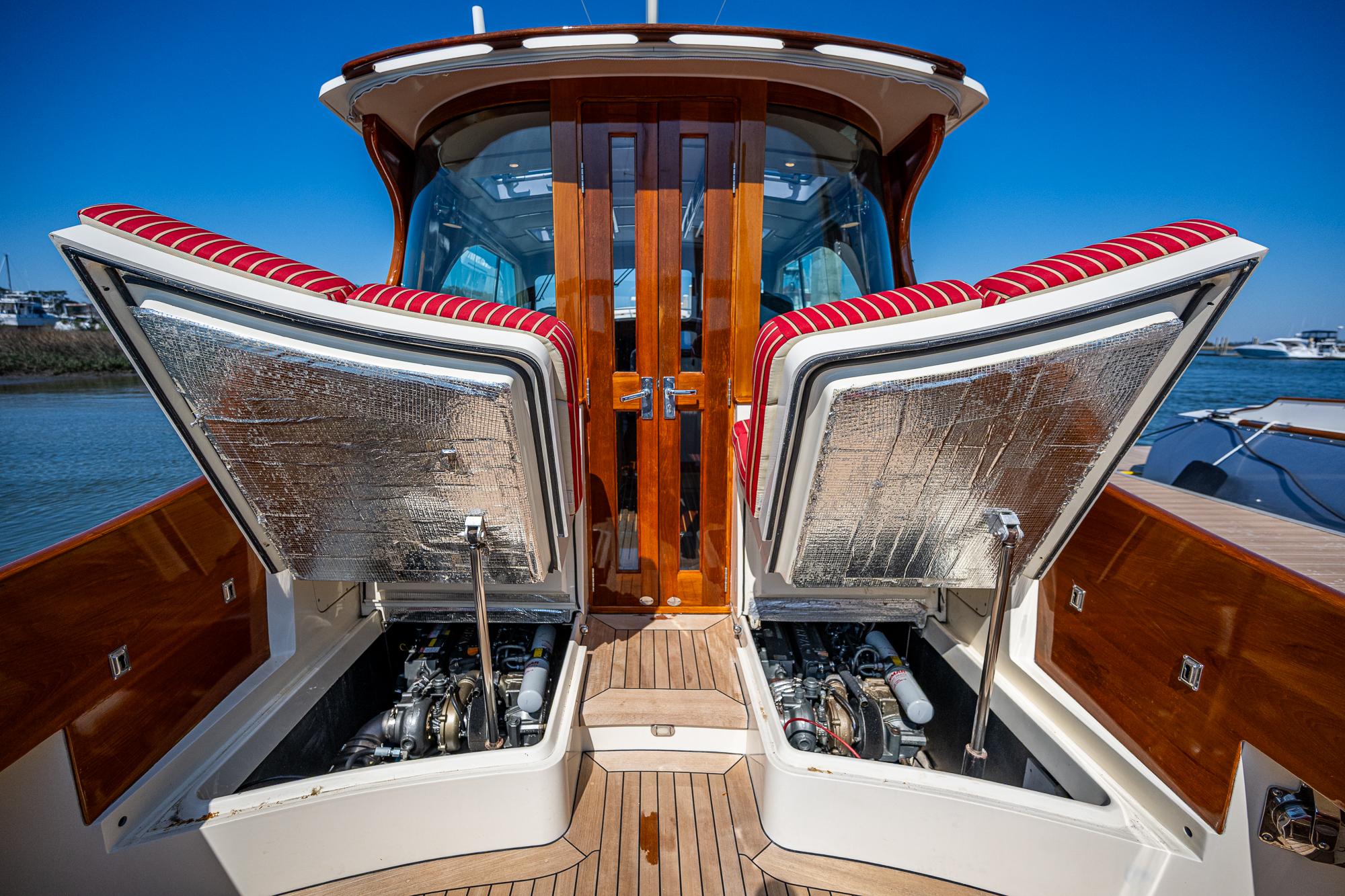

Twin 2006 Yanmar 6LY2-STP diesel 440-hp 6-cylinder in-line engines (Full overhauled 2020) with ZF Marine 1.41:1 reverse/reduction gear, Aqua Drive CV shaft system, Lenco trim tabs and twin Hamilton 322 waterjets. Mathers electric single-lever controls and synchronizer control the engine RPM's & transmission.
Patented Hinckley JetStick® control system (Upgraded in 2011) integrates forward and aft motion of the boat, steering, and the 10" electric bow thruster.
- Two-inch foam/lead fully insulated engine room and flexible engine mounts provide quiet, vibration-free cruising
- 24-volt DC 10" reversible prop bow thruster - integrated with JetStick®.
- Trim tabs - Dual-cylinder stainless steel with controls and displays at helm station.
- Saltwater cooled-in-line muffler exhaust system.
- Racor LG-100 in-line fuel filters for engine & generator with vacuum and water sensing gauges.
- Alarms for low oil pressure, high cooling water temperature, seawater flow, and jet high pressure (hydraulic).
- Oil transfer pump for engines, transmissions and generator.
- (2) Fuel transfer pumps with switch at helm.
- Flojet 12-volt DC pump with accumulator tank.
- High water bilge alarm system with Ultimate Senior switches
- 12-volt DC sump pump with automatic float switch for shower
- (3) 12-volt DC automatic bilge pumps with float switches.
- Manual Whale Gusher bilge pump.
- Saltwater Deck Wash: PAR 6900-Series pump, with spigot mounted at bow.
- Fireboy automatic fire extinguisher system, with automatic engine shut-down.
- (4) Dry chemical fire extinguishers
- 12-volt engine room blower.
- 40,000 BTU Marineair reverse-cycle air conditioner services pilothouse, galley, dinettes, head, shower, and forward cabin.
- Jetstick feedback sensors upgraded (2021)
- U-line SP-18 icemaker
TANKAGE:
- (2) Aluminum alloy 150-gallon wing fuel tanks.
- (1) 200-gallon centerline fuel tank with remote fuel gauges.
- 100-gallon stainless steel freshwater tank.
- 43-gallon holding tank
- 17-gallon stainless steel insulated water heater - heated electrically or by transfer of engine heat
EQUIPMENT:
GROUND TACKLE:
- Muir VRC 1200A electric 24-volt DC windlass in foredeck anchor locker.
- Custom 316L polished stainless steel bow roller.
- Bow roller mounted 35# stainless steel Delta anchor with 25' x 3/8" stainless steel chain +200' x 5/8" nylon rode.
SAFETY EQUIPMENT:
- ACR spotlight - mounted on pilothouse top with remote at helm
- Varnished teak bow burgee pole and stainless socket
- Varnished teak ensign pole and stainless steel socket
- Navigation lights
- Dock lines
- Fenders with covers
- Boat hook – mounted under starboard side deck
- Dual trumpet air horn - 12-volt – with switch on dash
- Brass 6" bell
- Life jackets
REMARKS:
DOUBLE EXPRESSO underwent a refit in 2020 which has many of the major systems onboard updated for years of enjoyment by the next owner of this beautiful Talaria 44 Motor Yacht. If you are looking for a Hinckley Talaria 44MY this one owner T44 is a must see, always Hinckley maintained and continuously updated over the years has DOUBLE EXPRESSO ready for immediate delivery.
